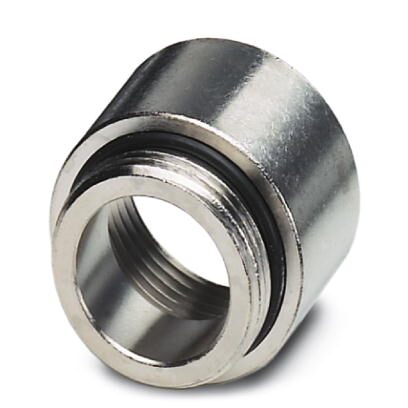

Phoenix Contact HCNPT34M25 NPT to M25 Adapter
The PHOENIX CONTACT HC-NPT-3/4-M25 adapter is a high-quality component designed to facilitate the transition between M25 and 3/4" NPT threaded connections. This adapter is particularly suited for industrial environments where protection against dust and water ingress is critical. Constructed from nickel-plated brass, it offers excellent corrosion resistance and mechanical strength. The IP68 rating ensures a reliable seal, making it suitable for applications in harsh conditions. The adapter's robust design and secure thread conversion make it a valuable asset for various industrial automation and electrical systems.
Phoenix Contact HCNPT34M25 NPT to M25 Adapter Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 25 pc
- Weight per Piece: 59.528 GRM
- Custom tariff number: 74199990
- Country of origin: Germany
- Length: 28 mm
- Length without connecting thread: 21 mm
- Connecting thread diameter: 25 mm
- Wrench size, union nut: 30 mm
- Hexagon angular dimension GRP: 30 mm
- Length of the connecting thread: 7 mm
- Degree of protection: IP68
- Ambient temperature (operation): -20 °C ... 80 °C
- Material: Nickel-plated brass
- Cable gland material: Nickel-plated brass
- O-ring material: NBR
- Thread type on connection side: M25
- Thread type on seal side: 3/4 inch NPT
- Color: silver
- eCl@ss 4.0: 27141209
- eCl@ss 4.1: 27141209
- eCl@ss 5.0: 27149109
- eCl@ss 5.1: 27149109
- eCl@ss 6.0: 27149109
- eCl@ss 7.0: 27149109
- ETIM 2.0: EC000441
- ETIM 3.0: EC000441
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
- UNSPSC 6.01: 31261502
- UNSPSC 7.0901: 31261502
- UNSPSC 11: 31261502
- UNSPSC 12.01: 31261502
- UNSPSC 13.2: 31261502
- EAC: Approval submitted
Buy the HC-NPT-3/4-M25 PHOENIX CONTACT NPT to M25 Adapter | myMectronic
Securely purchase the PHOENIX CONTACT HC-NPT-3/4-M25 adapter online for reliable and efficient industrial connections.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact HCNPT34M25?
You can click on the BUY or RFQ button to purchase HCNPT34M25 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part HCNPT34M25?
You can download the HCNPT34M25 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of HCNPT34M25?
Phoenix Contact
