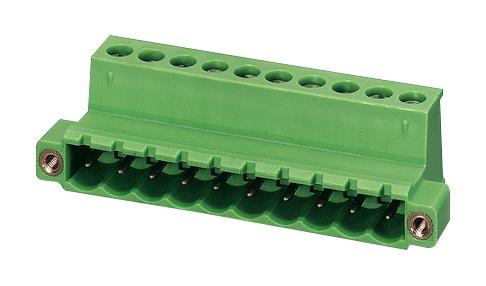

Phoenix Contact IC255STGF508 PCB Connector
The IC 2,5/ 5-STGF-5,08 is a printed-circuit board connector designed for reliable electrical connections in automation and control systems. Featuring a 5-position configuration with a pitch of 5.08 mm, it utilizes screw connection with tension sleeve for secure wire termination. Made from insulating PA material, it supports rated voltages up to 320 V (III/2) and a rated current of 12 A. Its green color and tin contact surface ensure durability and corrosion resistance in industrial environments, with easy assembly and high mechanical stability.
Phoenix Contact IC255STGF508 PCB Connector Specifications:
- Number of positions: 5
- Pitch: 5.08 mm
- Rated voltage (III/2): 320 V
- Rated current: 12 A
- Connection method: Screw with tension sleeve
- Material: PA (ultra-flame rated UL 94 V-0)
- Contact surface: Tin
- Dimensions: Length 19.2 mm, Height 15 mm, Width 35.52 mm
- Screw thread: M3, Tightening torque: 0.5–0.6 Nm
- Conductor cross section: solid 0.2–2.5 mm², AWG 24–12
- Maximum load current: 124 A
- Insulating material group: PA
- Approvals: UL Recognized, CSA, VDE, IEC/EN
Buy the Buy Phoenix Contact IC 2,5/ 5-STGF-5,08 Part Number IC255STGF508 Online
Purchase the Phoenix Contact IC 2,5/ 5-STGF-5,08 PCB connector online today. This high-quality 5-position module features a pitch of 5.08 mm, screw connection with tension sleeve, rated for 12 A and 320 V. Made with durable PA material and tin-plated contacts, it offers reliable electrical connections and excellent mechanical stability. Perfect for automation, control panels, and industrial equipment, it ensures long-term performance and easy mounting with precise dimensions, making it an essential component for efficient wiring solutions.
Get Phoenix Contact IC 2,5/ 5-STGF-5,08 today—built for precision and long-lasting durability in automation connections.
Frequently Asked Questions
Where can I buy Phoenix Contact IC255STGF508?
You can click on the BUY or RFQ button to purchase IC255STGF508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part IC255STGF508?
You can download the IC255STGF508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of IC255STGF508?
Phoenix Contact
