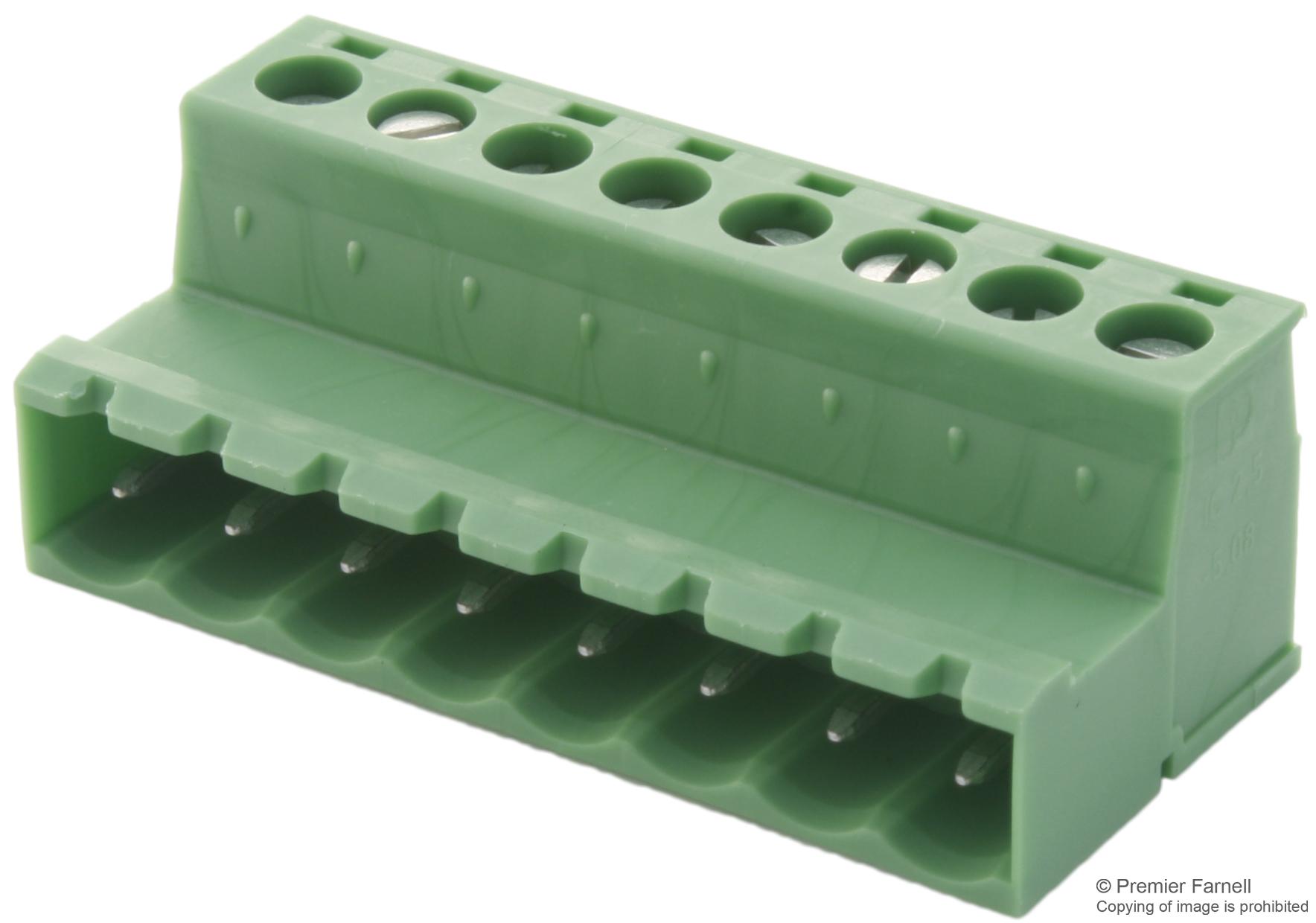

Phoenix Contact IC258ST508 PCB Connector
This PCB connector features 8 positions with a 5.08 mm pitch, screw connection with tension sleeve, tin contact surfaces, and is rated for 12 A at 320 V. Designed for modular PCB mounting, it provides reliable touch-proof device outputs and easy replacements. Compatible with various mounting options including DIN rail, it ensures low temperature rise and efficient current transfer in industrial automation, control systems, and electronic equipment. Environmentally friendly and compliant with international standards, this connector offers durable, high-quality performance in compact form factors.
Phoenix Contact IC258ST508 PCB Connector Specifications:
- Number of positions: 8
- Pitch: 5.08 mm
- Connection method: Screw connection with tension sleeve
- Rated current: 12 A
- Rated voltage: 320 V
- Contact surface: Tin
- Insulating material: PA
- Flammability rating: UL 94 V-0
- Screw thread: M3
- Tightening torque: Min 0.5 Nm, Max 0.6 Nm
- Conductor cross section: Solid and flexible min 0.2 mm², max 2.5 mm²
- External dimensions: Length 19.2 mm, Height 15 mm, Width 42.14 mm
- Mounting options: DIN rail and direct mounting
- Rated surge voltage: 4 kV
- Standards: EN-VDE, CSA, UL Recognized, VDE
- Approval: cULus Recognized, CB Scheme, EAC
Buy the Phoenix Contact Series IC 2.5/ 8-ST-5,08: IC258ST508
Purchase the Phoenix Contact PCB connector IC 2.5/ 8-ST-5,08 online today to enjoy reliable, high-quality electrical connections. Designed with 8 positions and a 5.08 mm pitch, this connector ensures secure fastening via screw connection with tension sleeve, rated for 12 A at 320 V. Perfect for automation and control panel applications, it offers easy module replacement, low temperature rise, and compliance with international standards for safety and durability. Buy now for top-notch performance in demanding industrial environments.
Get Phoenix Contact IC 2.5/ 8-ST-5,08 today—built for industrial reliability and secure PCB connections.
Frequently Asked Questions
Where can I buy Phoenix Contact IC258ST508?
You can click on the BUY or RFQ button to purchase IC258ST508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part IC258ST508?
You can download the IC258ST508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of IC258ST508?
Phoenix Contact
