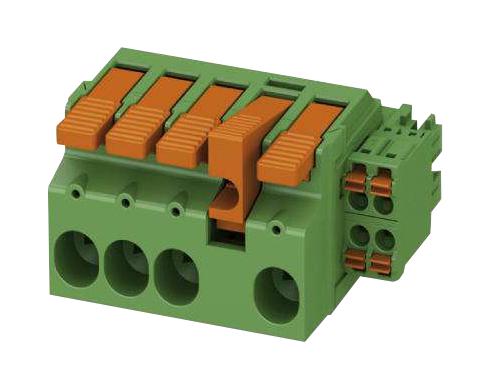

Phoenix Contact LPCH634STL3762 PCB hybrid connector
The PCB hybrid connector LPCH 6/3+4-STL3-7,62 is a reliable, 7-position interface designed for industrial automation and power distribution. Features include a push-in spring connection, a pitch of 7.62 mm, a rated current of 41 A, and a rated voltage of 1000 V. Constructed from tin-plated Cu alloy, it includes secure latch mechanisms for safe, quick connection and release. Its compact design ensures high durability, with compliance to UL 94 V-0 flammability ratings and IEC standards for electrical safety. It’s ideal for complex PCB applications requiring stable and precise connections in demanding environments.
Phoenix Contact LPCH634STL3762 PCB hybrid connector Specifications:
- Pitch: 7.62 mm
- Number of positions: 7
- Connection method: Push-in spring connection
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Conductor capacity: 0.75 mm² ... 10 mm² solid, 0.75 mm² ... 6 mm² flexible
- Conductor AWG: 18 ... 8
- Contact material: Cu alloy, tin-plated
- Insulating material: PAGF, flammability rating UL 94 V-0
- Dimensions: Length 48 mm, Width 40.3 mm, Height 35.65 mm
- Bushing diameter: 4.0 mm, Stripping length: 18 mm
- Environmental temp: -40°C ... 100°C operation, storage up to 70°C
- Standards: IEC 60999-1, IEC 60512, IEC 60664-1
Buy the Phoenix Contact LPCH 6/3+4-STL3-7,62 – Reliable PCB Hybrid Connector for Industrial Applications
Order the Phoenix Contact LPCH 6/3+4-STL3-7,62 online today and enjoy a high-quality, durable PCB hybrid connector designed for quick, secure connections. Featuring push-in spring technology and a compact 7.62 mm pitch, this connector supports up to 41 A and 1000 V, ensuring reliable power and signal transfer. Perfect for industrial automation, power distribution, and complex PCB systems, it meets stringent international standards for safety, flammability, and durability. Purchase now to streamline your assembly process and improve system stability with this dependable connection solution.
Buy Phoenix Contact LPCH 6/3+4-STL3-7,62 now and experience unmatched reliability and performance in demanding industrial environments.
