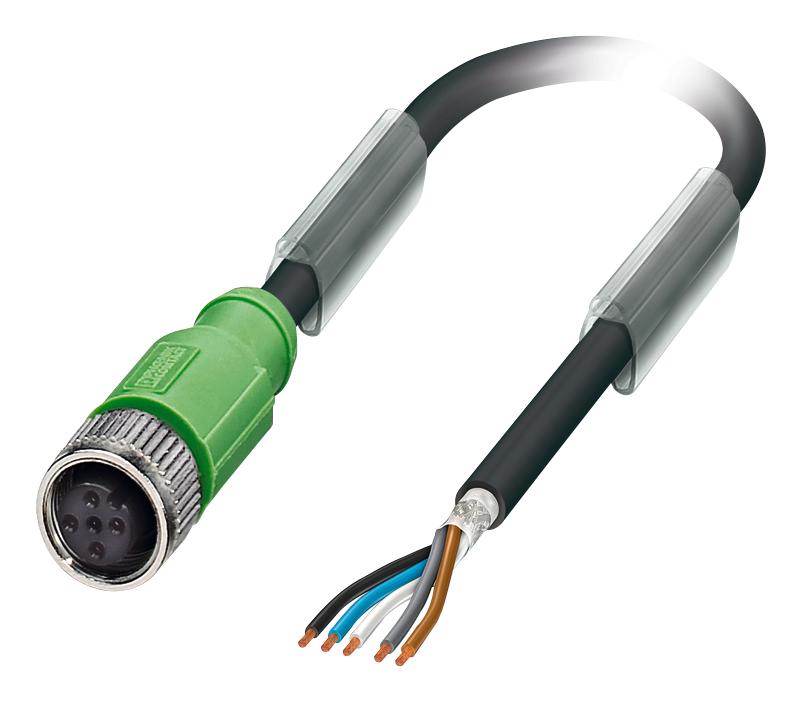

Phoenix Contact 1682935 Sensor Actuator Cable
The PHOENIX CONTACT SAC-5P-1,5-PUR/M12FS SH is a robust sensor/actuator cable designed for reliable data transmission in industrial environments. Featuring a 5-position configuration, PUR halogen-free insulation, and shielding, this cable minimizes interference and ensures consistent performance. The M12 connector provides a secure and standardized connection, making it suitable for a wide range of automation applications. Its durable construction and halogen-free properties contribute to safety and environmental responsibility.
Phoenix Contact 1682935 Sensor Actuator Cable Specifications:
- Packing unit: 1 STK
- GTIN: 4017918169213
- Weight per Piece (excluding packing): 87.000 g
- Custom tariff number: 85444290
- Country of origin: Poland
- Length of cable: 1.5 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 5
- Insulation resistance: 70 GΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: LiF9YC11Y
- UL AWM style: 20549
- Conductor cross section: 5x 0.34 mm² (Signal line)
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm
- Wire colors: Brown, white, blue, black, gray
- Overall twist: 5 wires around filler to the core
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: black-gray RAL 7021
- External cable diameter D: 5.9 mm ±0.2 mm
- Smallest bending radius, fixed installation: 29.5 mm
- Smallest bending radius, movable installation: 59 mm (up to +60°C)
- Number of bending cycles: 4000000
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 48 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: max. 57 Ω/km (at 20 °C)
- Nominal voltage, cable: 300 V (at 20 °C)
- Test voltage Core/Core: 3000 V (at 20 °C)
- Flame resistance: in acc. with UL FT-2
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Other resistance: hydrolysis and microbe resistant, partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Ambient temperature (operation) cable: -40 °C ... 80 °C (cable, fixed installation), -25 °C ... 80 °C (cable, flexible installation)
