Phoenix Contact LPCH636ST762 PCB Hybrid Connector
The PCB hybrid connector ensures reliable and efficient electrical connections for industrial applications. Featuring a push-in spring connection method, it supports a nominal current of 41 A with a 7.62 mm pitch and provides sturdy, stable contacts. The green housing is made from flame-retardant PAGF material, offering high insulation and durability. Its compression and connection tests confirm long-term stability, and its compact size makes it suitable for PCB mounting, with a rating of up to 1000V. Ideal for automation, control systems, and complex wiring environments.
Phoenix Contact LPCH636ST762 PCB Hybrid Connector Specifications:
- Pitch: 7.62 mm
- Number of positions: 9
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Conductor cross section solid: 0.75 mm² ... 10 mm²
- Conductor cross section flexible: 0.75 mm² ... 6 mm²
- Conductor cross section AWG: 18 ... 8
- Housing material: PAGF, flame retardant UL 94 V0
- Contact material: Cu alloy, tin-plated
- Dimensions: Length 48 mm, Width 36.49 mm, Height 35.65 mm
- Cylindrical gauge dimensions: 4.3mm x 4.0mm
- Stripping length: 18 mm
- Minimum clearance: 8 mm, Creepage distance: 10 mm
- Operating temperature: -40°C to 100°C
- Rated insulation voltage: 1000 V
- Tested for IEC standards IEC 60999-1, IEC 60512, IEC 60664

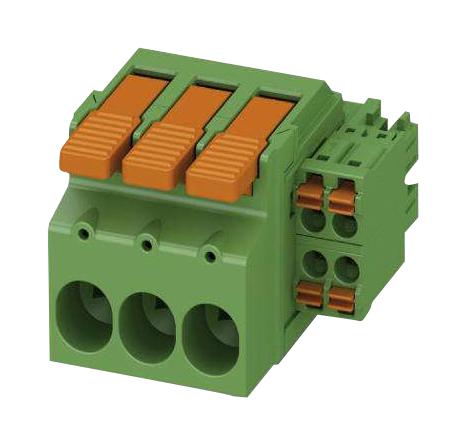

Buy the Phoenix Contact LPCH 6/ 3+6-ST-7,62 – Reliable PCB Hybrid Connector for Industrial Applications
Enhance your electrical systems with our reliable PCB hybrid connector offering a 41A current capacity, 7.62mm pitch, push-in spring connection, and flame-retardant housing. Designed for ease of installation and long-term stability, this connector supports vital automation and control applications. Its compact size and robust construction make it perfect for PCB mounting in industrial environments. Order online now and experience seamless, safe, and efficient electrical connections tailored for demanding industrial projects.
Order your Phoenix Contact LPCH 6/ 3+6-ST-7,62 PCB hybrid connector today and ensure dependable connections for your industrial automation and control projects.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH636ST762?
You can click on the BUY or RFQ button to purchase LPCH636ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH636ST762?
You can download the LPCH636ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH636ST762?
Phoenix Contact
