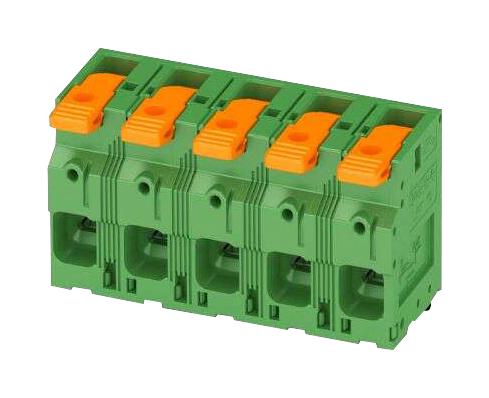

Phoenix Contact LPT164150ZB PCB terminal block
The LPT 16/ 4-15,0-ZB is a PCB terminal block designed for reliable and efficient electrical connections in electronic assemblies. It features a lever push-in connection method that allows for quick insertion and removal of conductors, including multi-stranded and ferrule-equipped wires, with a rated current of 76 A and a rated voltage of 1000 V. The terminal block is mounted via wave soldering, with a pitch of 15 mm, zigzag pinning, and a single level of connections. Its color-coded actuation lever provides intuitive operation, ensuring a secure and stable contact over long-term use, suitable for industrial automation and control systems.
Phoenix Contact LPT164150ZB PCB terminal block Specifications:
- Rated current: 76 A
- Rated voltage: 1000 V (II/2 and III/2)
- Connection method: Lever Push-in
- Conductor cross section solid: 0.75 mm² ... 16 mm²
- Conductor cross section flexible: 0.75 mm² ... 25 mm²
- Stripping length: 18 mm ... 20 mm
- Material: Cu alloy with tin-plated surface
- Housing color: green (6021)
- Housing material: PA, Flammability rating UL 94 V-0
- Dimensions: length 32 mm, pitch 15 mm, width and height as per product design
- Ambient temperature during operation: -40°C ... 105°C
- Minimum clearance: 8 mm inhomogeneous field (IIV/3), creepage distance 12.5 mm
- Packaging: packed in cardboard, 25 pieces per package
- Applicable standards: IEC 60947-7-4:2019-01, UL 94 V-0
- Pin layout: Zigzag pinning W, solder pin 3.6 mm
- Certifications: RoHS, WEEE compliant
Buy the Phoenix Contact Series LPT PCB Terminal Block: LPT164150ZB
Experience reliable power distribution with the Phoenix Contact LPT 16/ 4-15,0-ZB PCB terminal block. Designed with a lever push-in connection, it offers quick, tool-free conductor insertion and secure contact stability, ideal for industrial automation, control panels, and electronic devices. Its robust construction supports up to 76 A at 1000 V, ensuring performance and safety during long-term operation. Easy to mount via wave soldering and suitable for a variety of conductor sizes, this terminal block guarantees dependable and efficient electrical connections in demanding environments.
Get Phoenix Contact LPT164150ZB today—built for precision and long-lasting durability in electrical connections.
