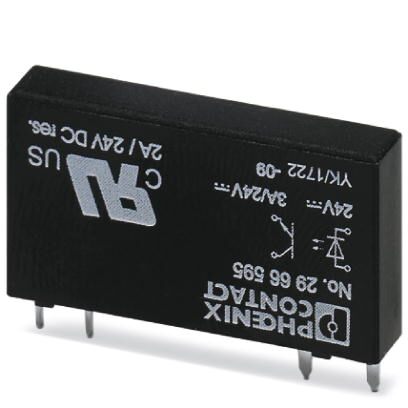

Phoenix Contact OPT24DC24DC2 Miniature Solid State Relay
The PHOENIX CONTACT OPT-24DC/24DC/2 is a miniature plug-in solid-state relay ideal for applications requiring reliable and efficient switching. Its compact size and robust design make it suitable for a wide range of industrial automation, control, and power distribution systems. The relay's vibration and shock resistance, combined with its RT III protection and wear-free operation, ensure long-term reliability in demanding environments. It can be easily soldered onto PCBs, simplifying integration into existing circuits. With a switching capacity of up to 24 V DC/3 A, this relay provides a versatile solution for various control and switching needs.
Phoenix Contact OPT24DC24DC2 Miniature Solid State Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918130947
- Weight per Piece (excluding packing): 5.340 g
- Custom tariff number: 85364190
- Country of origin: Hungary
- Width: 5 mm
- Height: 28 mm
- Depth: 15 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Degree of protection: RT III (wash-proof)
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 19.2 V DC ... 28.8 V DC
- Switching threshold "0" signal, voltage: ≤ 10 V
- Switching threshold "1" signal voltage: ≥ 16 V
- Typical input current at UN: 7 mA
- Typical response time: 20 µs (at UN)
- Typical turn-off time: 300 µs (at UN)
- Transmission frequency: 300 Hz
- Power dissipation for nominal condition: 0.17 W
- Output voltage range: 3 V DC ... 33 V DC
- Limiting continuous current: 3 A (see derating curve)
- Maximum inrush current: 15 A (10 ms)
- Voltage drop at max. limiting continuous current: ≤ 150 mV
- Output circuit: 2-wire, floating
- Type of protection: Reverse polarity protection
- Surge protection: Yes
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Standards and regulations: IEC 60664, EN 50178
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Substance compliance: No hazardous substances above threshold values
