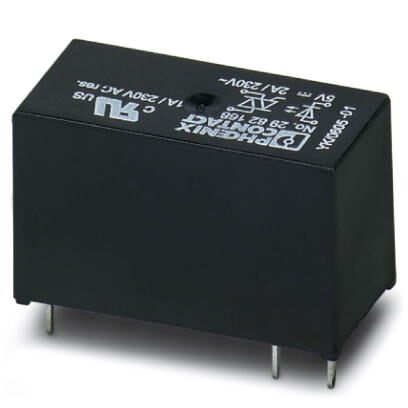

Phoenix Contact OPT5DC230AC2 Miniature Solid State Relay
The PHOENIX CONTACT OPT- 5DC/230AC/ 2 is a miniature solid-state relay engineered for robust and efficient switching in various industrial environments. Its compact design and solid-state construction ensure vibration resistance, shock resistance, and long-term durability, eliminating the need for mechanical wear. The RT III-proof (wash-proof) rating provides enhanced protection against environmental factors, making it suitable for demanding applications. The relay's zero-voltage switching capability minimizes inrush currents and reduces stress on connected components. It is commonly used in industrial automation, process control, and building automation systems where reliable and efficient switching is essential.
Phoenix Contact OPT5DC230AC2 Miniature Solid State Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918996963
- Weight per Piece (excluding packing): 10.930 g
- Custom tariff number: 85364190
- Country of origin: Hungary
- Width: 12.7 mm
- Height: 29 mm
- Depth: 15.7 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Degree of protection: RT III (wash-proof)
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 4 V DC ... 6 V DC
- Switching threshold "0" signal, voltage: < 1 V DC
- Switching threshold "1" signal voltage: > 3 V DC
- Typical input current at UN: 15 mA
- Typical response time: 10 ms
- Typical turn-off time: 10 ms
- Type of protection: Reverse polarity protection
- Protective circuit/component (input): Polarity protection diode
- Transmission frequency: 10 Hz
- Power dissipation for nominal condition: 0.08 W
- Output nominal voltage: 230 V AC
- Output voltage range: 24 V AC ... 253 V AC
- Limiting continuous current: 2 A
- Maximum inrush current: 30 A
- Min. load current: 25 mA
- Leakage current: < 1 mA
- Surge current: 30 A
- Max. load value: 4 A
- Voltage drop at max. limiting continuous current: ≤ 1 V
- Output circuit: 2-conductor floating, zero voltage switch
- Type of protection (output): Surge protection
- Protective circuit/component (output): RC element
- Test voltage input/output: 2.5 kV
- Mounting position: any
- Assembly instructions: See derating curve
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Designation: Standards/regulations
- Standards/regulations: IEC 60664, EN 50178
- Rated insulation voltage: 250 V AC
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- Flammability rating according to UL 94: V0
- China RoHS: Environmentally Friendly Use Period = 50
Buy the 2982168 PHOENIX CONTACT Miniature Solid State Relay | myMectronic
Purchase the PHOENIX CONTACT OPT- 5DC/230AC/ 2 securely online and ensure a reliable supply for your critical applications.
