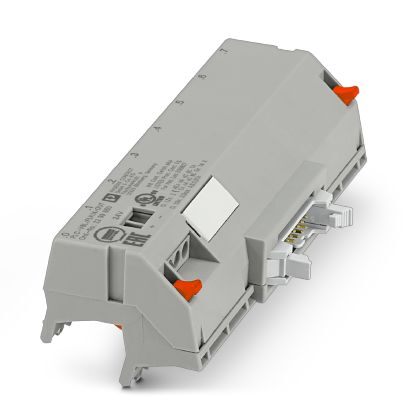

Phoenix Contact PLCV8LFLK14OUT PLC Output Adapter
The PHOENIX CONTACT PLC-V8L/FLK14/OUT adapter is designed to facilitate seamless integration of PLC systems with cabling requirements. It supports eight 14mm PLC interfaces, offering a 14-position flat-ribbon cable connection for efficient system cabling. The adapter employs Plus switching for control logic, ensuring reliable and precise operation. Compatible with a wide range of controllers including Siemens, GE-Fanuc, Allen-Bradley, Honeywell, Mitsubishi, and ABB, this adapter simplifies PLC system integration and enhances overall system performance. It is ideal for industrial automation applications requiring robust and dependable PLC connectivity.
Phoenix Contact PLCV8LFLK14OUT PLC Output Adapter Specifications:
- Packing unit: 1 STK
- GTIN: None
- Width: 112.3 mm
- Height: 100 mm
- Depth: 94 mm
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Max. perm. operating voltage: 30 V DC
- Max. perm. current (per branch): 1 A (per signal path)
- Max. permissible current (separate power supply): 3 A
- Number of positions: 14
- Status display: Green LED
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Flammability rating according to UL 94: V0
- Degree of protection: IP20
- Standards/regulations: IEC 60664, DIN EN 50178, IEC 62103
- Rated insulation voltage: 50 V
- Rated surge voltage: 0.5 kV (Functional insulation)
- Degree of pollution: 2
- Overvoltage category: II
- Connection method (Supply): Screw connection
- Stripping length (Supply): 8 mm
- Screw thread (Supply): M3
- Conductor cross section solid (Supply): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Supply): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Supply): 24 ... 12
- Number of connections: 1
- Connection method (Controller level): IDC/FLK pin strip (2.54 mm)
- Number of positions (Controller level): 14
- Supported controllers: SIEMENS S7-400, GE-FANUC 90-30, ALLEN-BRADLEY ControlLogix, ALLEN-BRADLEY PLC 5, HONEYWELL Experion PKS C200, MITSUBISHI MELSEC Q, SIEMENS S7-300 / ET 200 M, ABB S800 I/O, Emerson DeltaV, GE-FANUC RX3i, MITSUBISHI MELSEC L
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242208
- eCl@ss 7.0: 27242208
- eCl@ss 8.0: 27141152
- ETIM 2.0: EC001423
- ETIM 3.0: EC001423
- ETIM 4.0: EC001423
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121402
- UNSPSC 11: 39121402
- UNSPSC 12.01: 39121402
- UNSPSC 13.2: 39121402
Buy the PLC-V8L/FLK14/OUT PHOENIX CONTACT PLC Output Adapter | myMectronic
Purchase the PHOENIX CONTACT PLC-V8L/FLK14/OUT adapter securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact PLCV8LFLK14OUT?
You can click on the BUY or RFQ button to purchase PLCV8LFLK14OUT from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PLCV8LFLK14OUT?
You can download the PLCV8LFLK14OUT datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PLCV8LFLK14OUT?
Phoenix Contact
