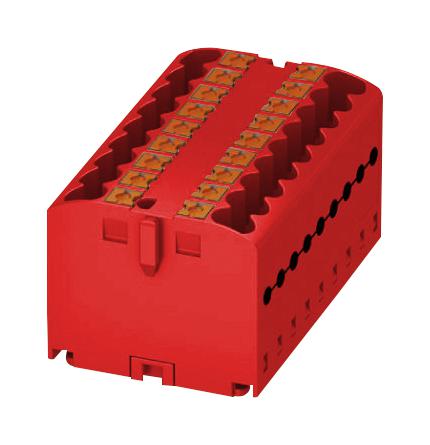

Phoenix Contact PTFIX18X25RD Distribution Block
The PTFIX distribution block is a compact, red, push-in connection terminal designed for efficient wiring in electrical panels. It features 18 simple-to-use connections with a cross-section range of 0.14 mm² to 4 mm² (AWG 26-12), and a rated voltage of 500 V with 24 A current capacity. Its DIN rail mounting compatibility allows flexible installation, with space-saving transverse mounting options. Made from insulating PA material with UL 94V-0 flammability rating, it offers high reliability for rail vehicles and industrial applications, passing various fire and environmental standards.
Phoenix Contact PTFIX18X25RD Distribution Block Specifications:
- Material: PA (Polyamide)
- Flammability rating: UL 94V-0
- Rated surge voltage: 6kV
- Maximum power dissipation: 0.77 W
- Maximum load current: 24 A
- Nominal voltage: 500 V
- Number of connections: 18
- Connection method: Push-in
- Conductor cross section: 0.14 mm² - 4 mm² (AWG 26 - 12)
- Width: 46.5 mm
- Height: 21.2 mm
- Length: 28.2 mm
- Temperature range: -60°C to +130°C
- Fire protection standards: DIN EN 45545-2 R22-R26, UL, CSA
- Environmental compliance: China RoHS
- Standards: IEC 60998-2-2
- Approvals: UL Recognized, cUL Recognized, CSA
Buy the Phoenix Contact Series PTFIX Distribution Block: 3273312
Order the Phoenix Contact PTFIX 18X2.5 RD distribution block online today to benefit from quick, tool-free push-in connection technology. Its 18 robust connections support wire sizes from 0.14 to 4 mm², ensuring flexible wiring for industrial and rail systems. With high current capacity of 24A and rated voltage of 500V, it guarantees reliable performance even in demanding environments. Easy DIN rail mounting and compliance with fire safety standards make it an excellent choice for modern automation and control panels. Secure your supply chain and streamline installation with this versatile distribution solution.
Buy Phoenix Contact distribution block PTFIX 18X2.5 RD now and experience unmatched reliability and space-saving wiring in your industrial or rail applications.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX18X25RD?
You can click on the BUY or RFQ button to purchase PTFIX18X25RD from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX18X25RD?
You can download the PTFIX18X25RD datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX18X25RD?
Phoenix Contact
