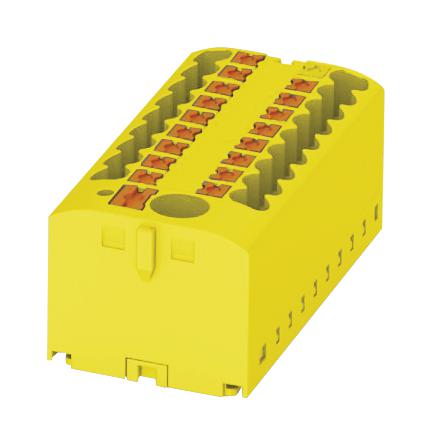

Phoenix Contact PTFIX618X25YE Distribution Block
The PTFIX 6/18X2,5 YE distribution block is a versatile, yellow, push-in connection terminal block rated for 500 V and 24 A. Featuring 19 connections, it supports conductor cross sections from 0.14 mm² to 4 mm² and AWG 26 to 12. It offers easy, tool-free wiring, DIN rail mounting, and space savings. Suitable for rail vehicles, it complies with fire and insulation standards, passing various fire, shock, and thermal tests, making it ideal for complex automation and power distribution applications in demanding environments.
Phoenix Contact PTFIX618X25YE Distribution Block Specifications:
- Color: Yellow
- Insulating material: PA
- Flammability rating: UL 94 VO
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Maximum power dissipation: 1.31 W
- Maximum load current: 57 A (with 10 mm² conductor)
- Nominal current: 24 A
- Nominal voltage: 500 V
- Width: 56 mm
- Length: 28.2 mm
- Height: 21.2 mm
- Connection method: Push-in
- Standard compliance: IEC 60998-2-2
- Conductor cross section: solid min. 0.14 mm², max. 4 mm²
- Flexible min. 0.14 mm², max. 2.5 mm²
- Stripping length: 8-10 mm
- Flammability rating according to UL 94 VO
- Fire protection: DIN EN 45545-2 R22, R23, R24, R26
- Insulation temperature index: 130°C
- Width: 56 mm
- Length: 28.2 mm
- Height: 21.2 mm
Buy the Buy Phoenix Contact Distribution Block Part Number PTFIX 6/18X2,5 YE Online
Purchase the Phoenix Contact distribution block PTFIX 6/18X2,5 YE online today for fast, tool-free wiring in automation, power distribution, and railway applications. This high-quality terminal block features 19 push-in connections supporting conductor sizes from 0.14 mm² to 4 mm² and AWG 26 to 12, ensuring a secure and efficient connection. Its solid construction, UL and IEC compliance, and space-saving DIN rail mounting make it ideal for complex industrial environments requiring reliable, durable components. Order now for quick delivery and excellent performance.
Order your Phoenix Contact PTFIX 6/18X2,5 YE distribution block today and enhance your wiring efficiency with reliable, space-saving connection technology.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX618X25YE?
You can click on the BUY or RFQ button to purchase PTFIX618X25YE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX618X25YE?
You can download the PTFIX618X25YE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX618X25YE?
Phoenix Contact
