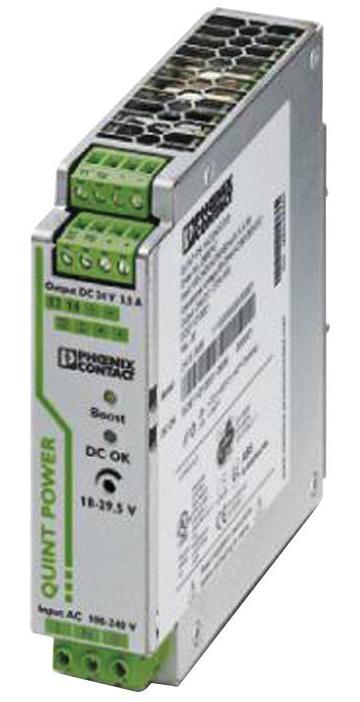

Phoenix Contact QUINTPS1AC24DC35 Industrial Power Supply
The QUINT-PS/1AC/24DC/3.5 is a 24V, 84W primary switched-mode power supply designed for DIN rail mounting. It features SFB (Selective Fuse Breaking) technology, providing reliable protection and quick tripping at six times the nominal current. The system offers high availability with preventive function monitoring, alerting operators to critical states before failures occur. It is capable of reliably starting heavy and difficult loads using a static power reserve power boost of up to 1.5 times the nominal current. Equipped with an IP20 protection rating, it operates within a temperature range of -25°C to 70°C. In case of power failure, it provides a bypass time of more than 20ms at 120VAC and over 80ms at 230VAC. Suitable for power management applications.
Phoenix Contact QUINTPS1AC24DC35 Industrial Power Supply Specifications:
- Dimensions: Depth with alternative assembly 35mm, Width 10/03/2016 Page 1/7
- Ambient conditions: IP20, -25°C to 70°C operation (-60°C derating 2.5%/K), -40°C to 85°C storage
- Max. relative humidity: < 95% non-condensing at 25°C
- Input voltage: 100 VAC to 240 VAC, 85 VAC to 264 VAC, 90 VDC to 350 VDC
- Input fuse: 5 A slow-blow, internal, Discharge current to PE < 3.5mA
- Efficiency: > 88% at 230V AC and nominal load
- Output voltage: 24 V DC, adjustable from 18 V DC to 29.5 V DC
- Output power: 84W, max power loss 11W, Power boost 4A at -25°C to 40°C
- Protection: Transient surge protection, varistor, IP20
- Maximum altitude: 5000 m, Noise immunity: EN 61000-6-2:2005
- Connection: Pluggable screw terminals, wire range AWG 20-12, stripping length 7mm
- Standards: UL Listed UL 508, IEC 60950-1, EN 61000 series, EN 60204-1, EN 50178, certified for medical and shipbuilding applications
- Lifetime: > 1,433,000 hours at 25°C, > 820,000 hours at 40°C, > 360,000 hours at 60°C
Buy the Buy Phoenix Contact Power Supply Part Number QUINTPS1AC24DC35 Online
Purchase the Phoenix Contact QUINT-PS/1AC/24DC/3.5 power supply online today and ensure reliable, efficient power delivery for your industrial automation systems. Designed with advanced SFB technology, it offers quick protection at six times the nominal current and features preventive monitoring to maximize system uptime. Its compact DIN rail mounting, high efficiency, and static power reserve make it ideal for demanding loads. Safeguard your operations with this robust, IP20-rated power supply that operates reliably across wide temperature ranges and provides superior overload protection. Order now to enhance your automation setup with high-quality power management.
Get Phoenix Contact QUINTPS1AC24DC35 today—built for demanding industrial applications with high system availability and reliable overload protection.
