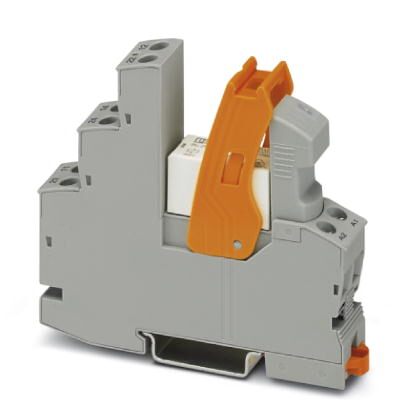

Phoenix Contact RIF1RSCLDP24DC2X21 24V DC Relay Module
The PHOENIX CONTACT RIF-1-RSC-LDP-24DC/2X21 relay module is a versatile solution for various industrial automation and control applications. This pre-assembled module combines a relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket into a single unit. It operates on a 24V DC input voltage and offers 2 changeover contacts for flexible circuit configuration. The integrated damping diode protects the relay from voltage spikes, ensuring reliable operation. Its compact design and screw connection make it easy to integrate into existing systems, and it's suitable for mounting on NS 35/7.5 rails.
Phoenix Contact RIF1RSCLDP24DC2X21 24V DC Relay Module Specifications:
- Packing unit: 1
- GTIN: 4046356732130
- Custom tariff number: 85364190
- Width: 16 mm
- Height: 89 mm
- Depth: 75 mm
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range: see diagram
- Typical input current at UN: 18 mA
- Typical response time: 8 ms
- Typical release time: 10 ms
- Coil voltage: 24 V DC
- Protective circuit: Damping diode
- Operating voltage display: Yellow LED
- Power dissipation for nominal condition: 0.43 W
- Contact type: 2 PDT
- Type of switch contact: Single contact
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V (at 10 mA)
- Min. switching current: 10 mA (At 5 V)
- Maximum inrush current: 25 A (20 ms, N/O contact)
- Limiting continuous current: 8 A (see diagram)
- Interrupting rating (ohmic load) max.: 192 W (at 24 V DC)
- Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13)
- Connection name: Coil side
- Connection method: Screw connection
- Stripping length: 8 mm
- Conductor cross section solid: 0.14 mm² ... 6 mm²
- Conductor cross section flexible: 0.14 mm² ... 4 mm²
- Conductor cross section AWG: 26 ... 10
- Test voltage relay winding/relay contact: 4 kVrms(50 Hz, 1 min.)
- Test voltage PDT/PDT: 2.5 kVrms(50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Degree of protection: IP20 (Relay socket) / RT III (Relay)
- Mechanical service life: approx. 3x 10^7 cycles
- Standards/regulations: DIN EN 50178
- Rated surge voltage: 6 kV
- Insulation: Safe isolation, basic insulation, and 4 kV rated surge voltage between all changeover contacts.
- Degree of pollution: 2
- Overvoltage category: III
