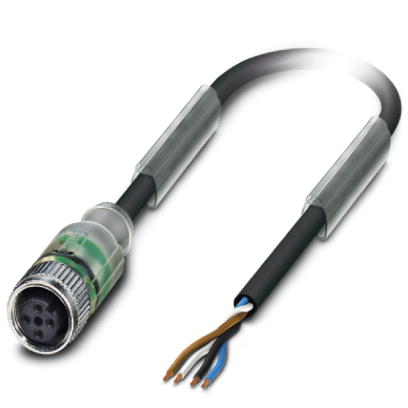

Phoenix Contact SAC4P30PURM12FS2L 4-Position Sensor Cable
The PHOENIX CONTACT SAC-4P- 3,0-PUR/M12FS-2L is a robust sensor/actuator cable designed for reliable data transmission in industrial automation applications. It features a 4-position M12 connector with A-coding, providing a secure and standardized connection. The cable itself is constructed with a durable PUR (polyurethane) jacket, offering excellent resistance to oils, chemicals, and abrasion. The inclusion of two LEDs allows for easy visual diagnostics of the connection status. This cable is ideal for applications requiring flexible and reliable connectivity in harsh environments, such as automated manufacturing, robotics, and process control systems. Its halogen-free composition ensures compliance with environmental regulations, and its robust construction guarantees long-term performance and reduced maintenance costs.
Phoenix Contact SAC4P30PURM12FS2L 4-Position Sensor Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 101.2 GRM
- Custom tariff number: 85444290
- Country of origin: Poland
- Length of cable: 3 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 24 V
- Number of positions: 4
- Contact resistance: ≤ 5 mΩ
- Insulation resistance: ≥ 1 GΩ*km
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: 2 LEDs
- Surge voltage category: II
- Pollution degree: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Inflammability class according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y11Y-HF
- UL AWM style: 20549 / 10493 (80°C/300 V)
- Conductor cross section: 4x 0.34 mm²
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm
- Thickness, insulation: ≥ 0.21 mm
- Wire colors: brown, white, blue, black
- Overall twist: 4 wires, twisted
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 0.8 mm
- External cable diameter D: 4.7 mm ±0.15 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Number of bending cycles: 4000000
- Minimum bending radius, drag chain applications: 10 x D
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 30 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: ≤ 58 Ω/km
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
- Flame resistance: in accordance with DIN UL-Style 20549, in accordance with FT1 as per UL 758
- Halogen-free: in accordance with DIN VDE 0472 part 815, in accordance with DIN EN 50267-2-1
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Other resistance: Highly resistant to acids, alkaline solutions and solvents, hydrolysis and microbe resistant, partly UV-resistant in accordance with DIN EN ISO 4892-2-A, Low adhesion, abrasion-resistant
