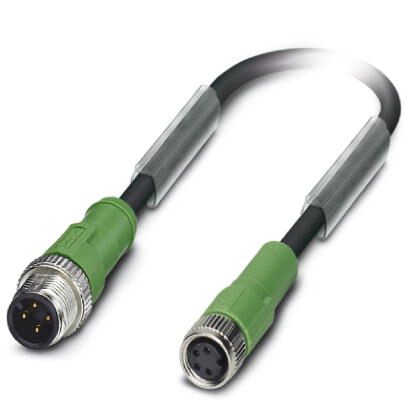

Phoenix Contact SAC4PM12MS30PURM8FS 4-Position M12 Sensor Cable
The Phoenix Contact SAC-4P-M12MS/3,0-PUR/M 8FS is a versatile sensor/actuator cable designed for reliable connection in industrial automation systems. This cable features a 3-meter length, a durable PUR jacket resistant to oils and chemicals, and robust M12 and M8 connectors for secure and dependable connections. It is ideal for applications requiring data transmission and power delivery to sensors, actuators, and other devices in harsh environments. The cable's halogen-free composition and resistance to various substances contribute to its longevity and safety.
Phoenix Contact SAC4PM12MS30PURM8FS 4-Position M12 Sensor Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4017918180386
- Weight per Piece (excluding packing): 88.700 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 3 m
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65/IP67
- Rated current at 40°C: 4 A
- Rated voltage AC: 48 V
- Rated voltage DC: 60 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations (connector): IEC 61076-2-101, IEC 61076-2-104
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 connector): 0.4 Nm
- Torque (M8 connectors): 0.2 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable abbreviation: Li9Y11Y-HF
- Conductor cross section: 4x 0.25 mm² (Signal line)
- AWG signal line: 24
- Conductor structure signal line: 32x 0.10 mm
- Core diameter including insulation: 1.17 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm
- Overall twist: 4 wires, twisted
- External sheath, color: black-gray RAL 7021
- External cable diameter D: 3.95 mm ±0.15 mm
- Smallest bending radius (fixed): 20 mm
- Smallest bending radius (movable): 40 mm
- Number of bending cycles: 10000000
- Cable weight: 23 kg/km
- Outer sheath material: PUR
- Conductor insulation material: PP
- Conductor material: Bare Cu litz wires
- Insulation resistance (cable): ≥ 100 GΩ*km
- Conductor resistance: max. 78 Ω/km
- Nominal voltage (cable): ≤ 300 V
- Test voltage (cable): ≥ 3000 V
- Flame resistance: in accordance with UL 758/1581 FT2, DIN EN 60332-2-2
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Resistance to chemicals: Highly resistant to acids, alkaline solutions and solvents
- Resistance to microbes: hydrolysis and microbe resistant
- UV resistance: partly UV-resistant
- Ambient temperature (cable operation): -40 °C ... 80 °C (fixed), -25 °C ... 80 °C (flexible)
- China RoHS: Environmentally friendly use period: unlimited
- eCl@ss 4.0: 27060300
- eCl@ss 4.1: 27060300
- eCl@ss 5.1: 27061800
- eCl@ss 6.0: 27279200
- eCl@ss 7.0: 27279218
- eCl@ss 8.0: 27279218
- eCl@ss 9.0: 27060311
- ETIM 2.0: EC000830
- ETIM 3.0: EC001855
- ETIM 4.0: EC001855
- ETIM 5.0: EC001855
- ETIM 6.0: EC001855
- ETIM 7.0: EC001855
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
