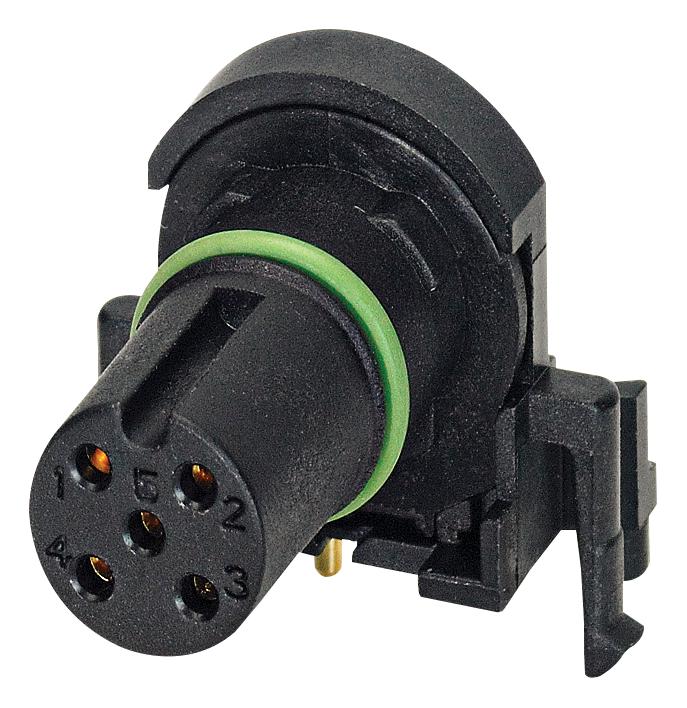

Phoenix Contact SACCCIM12FS5CONL90SCO Sensor Connector
This product is a flush-type connector designed for industrial sensor and actuator applications. It features a 5-pos. socket with A-coded configuration and angled solder connection. The connector ensures reliable electrical connections with a degree of protection IP67, suitable for harsh environments, operating from -25°C to 85°C. It includes robust materials like CuZn contact surfaces with gold plating and PA66 contact carriers, offering over 100 million insertion cycles. Its compact design allows easy PCB mounting, ensuring quick installation and secure contact for automation systems.
Phoenix Contact SACCCIM12FS5CONL90SCO Sensor Connector Specifications:
- Rated current at 40°C: 4A
- Rated voltage: 60V
- Rated surge voltage: 1.5 KV
- Number of positions: 5
- Insulation resistance: > 100 MQ
- Contact material: CuZn with Au surface
- Connection method: Solder pins
- Degree of protection: IP67
- Ambient temperature (operation): -25°C to 85°C
- Material: PA 66, FKM/EPDM sealing
- Insertion/withdrawal cycles: > 100
- Torque: 3.0 - 4.0 Nm
- Standard: IEC 61076-2-101
Buy the Phoenix Contact SACCCIM12FS5CONL90U2013 Reliable Sensor Connectors for Industrial Applications
Get your Phoenix Contact Sensor Connector now, designed for industrial sensor and actuator integration, featuring IP67 protection, gold-plated contacts, and easy PCB mounting. This reliable, durable connector supports over 100 insertion cycles, suited for harsh environments with temperatures ranging from -25°C to 85°C. Its compact, robust design simplifies installation, enhances performance, and guarantees long-term stability. Perfect for automation systems, machinery, and control panels, it provides secure, maintenance-free electrical connections for industry-ready applications. Purchase online today for seamless integration and outstanding reliability.
Order your Phoenix Contact Series SACCCIM12FS5CONL90 today and ensure reliable connections in your automation projects with this IP67-rated flush-type connector.
