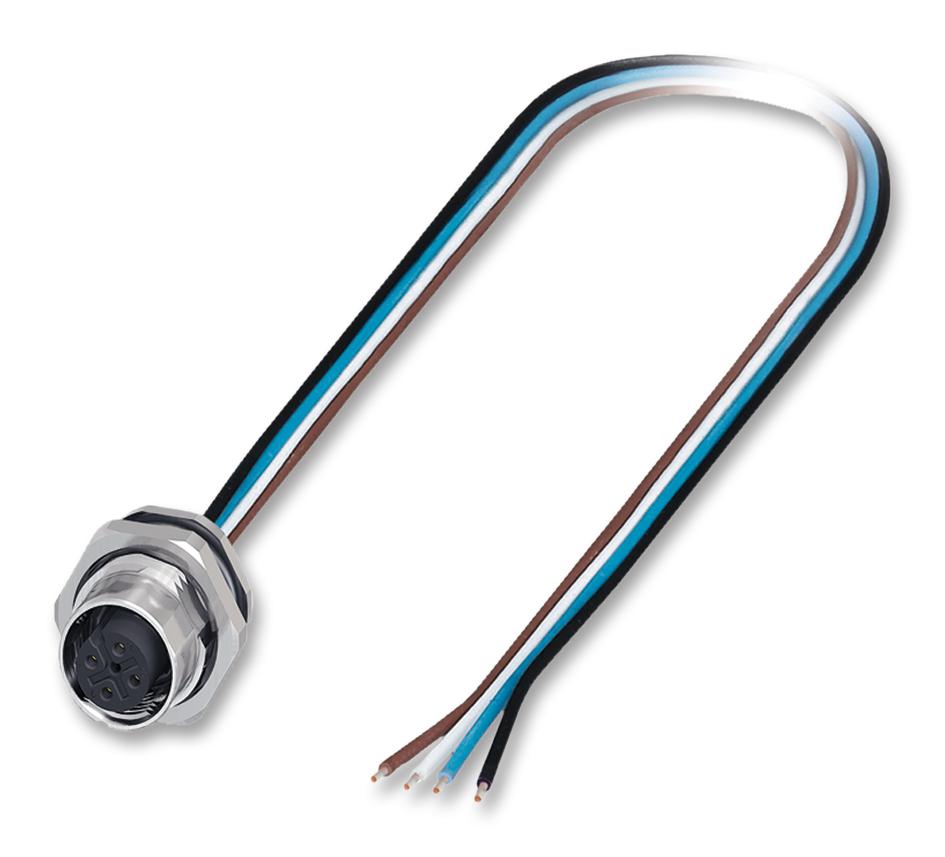

Phoenix Contact SACCDSIM12MS4CONM1605 Sensor Connector
This flush-type connector features 4 positions and a robust design, with a screw mounting mechanism and M16 threaded housing. It is equipped with 0.5m TPE litz wire made of tin-plated copper, ensuring reliable signal, data, and power transmission. The connector supports high degrees of protection IP67, suitable for demanding environments. It complies with IEC 61076-2-101 standards and offers overvoltage protection up to 2.5 kV, rated current of 4A, and voltage of 250V. Designed for quick connection with SPEEDCON fast locking system, it is ideal for sensor and actuator applications.
Phoenix Contact SACCDSIM12MS4CONM1605 Sensor Connector Specifications:
- Number of positions: 4
- Rated current: 4A
- Rated voltage: 250 V
- Surge voltage: 2.5 KV
- Insulation resistance: > 100 MΩ
- Insertion/withdrawal cycles: > 100
- Degree of protection: IP67
- Ambient temperature (operation): -25°C to 85°C
- Contact material: CuZn
- Contact surface: Au
- Cable type: TPE litz wire
- Conductor cross section: 0.34 mm²
- Conductor structure: 7x 0.25 mm
- Core diameter including insulation: 1.2 mm ± 0.07 mm
- Cable length: 0.5 m
- Standards: IEC 61076-2-101
- Flammability rating: UL 94 V-0
- Sealing material: FKM
- Mounting: Rear mounting with M16x1.5 thread
Buy the Buy Phoenix Contact Sensor Connector Part Number SACCDSIM12MS4CONM1605 Online
Purchase the Phoenix Contact sensor connector online and enjoy top-tier quality with IP67 protection, robust design, and quick locking system. This 4-position connector features a screw mounting with M16 thread, 0.5m TPE litz wire, and complies with IEC standards, making it ideal for demanding industrial environments. Its high insulation resistance, overvoltage protection, and durable materials ensure long-lasting performance and safety. Easy to install and reliable, this connector supports signal, data, and power transmission for automation systems. Order now to streamline your sensor and actuator connections efficiently.
Buy Phoenix Contact SACCDSIM12MS4CONM1605 now and experience unmatched reliability and performance in sensor and actuator applications with IP67 protection and quick locking system.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIM12MS4CONM1605?
You can click on the BUY or RFQ button to purchase SACCDSIM12MS4CONM1605 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIM12MS4CONM1605?
You can download the SACCDSIM12MS4CONM1605 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIM12MS4CONM1605?
Phoenix Contact
