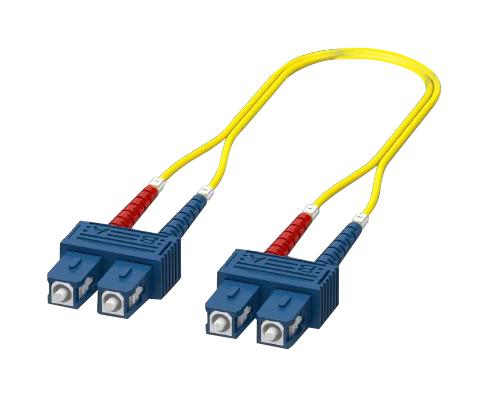

Phoenix Contact 1115550 Fiber Optic Patch Cable
The fiber optic patch cable is a single-mode OS2 duplex jumper with SC-SC connectors and UPC polishing. Made of halogen-free flame-retardant material, it is designed for indoor fiber optics distribution and termination devices. The cable features an 8-shaped glass fiber structure, yellow LSZH outer sheath, and has a length of 1 meter. It complies with IEC standards for fire safety and environmental regulation, with resistance to temperature variations from -20°C to 60°C and an insertion cycle of 500. It is lightweight, durable, and RoHS compliant for reliable optical signal transmission.
Phoenix Contact 1115550 Fiber Optic Patch Cable Specifications:
- Cable length: 1.00 meter
- Cable type: Single-mode fiberglass
- Cable external diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Outer sheath material: LSZH
- Sheath color: Yellow
- Flammability rating: UL 94VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistance to oil: Not resistant
- Environmental compliance: RoHS, IEC 60754-2
- Ambient temperature: -20°C to 60°C
- Insertion/withdrawal cycles: 500
- Resistance to fumes: IEC 61034
- Fire behavior: No toxic fumes
- Environmental use period: 50 years
Buy the Phoenix Contact 1115550 – Reliable Fiber Optic Patch Cable for Industrial Applications
Enhance your fiber network with this high-quality indoor single-mode fiber optic patch cable designed for reliable performance and strict safety standards. Measuring 1 meter, it features a yellow LSZH outer sheath for flame retardance and environmental safety. Its duplex SC-SC connectors with UPC polishing ensure optimal signal transmission with minimal loss, making it ideal for fiber optic distribution and termination. Compliant with IEC standards, it withstands temperatures from -20°C to 60°C and offers 500 insertion cycles for long-term durability. Easy to install and roHS compliant, it guarantees exceptional connectivity for industrial applications.
Buy Phoenix Contact fiber optic patch cable 1115550 now and experience unmatched reliability, high performance, and compliance for your fiber infrastructure needs.
