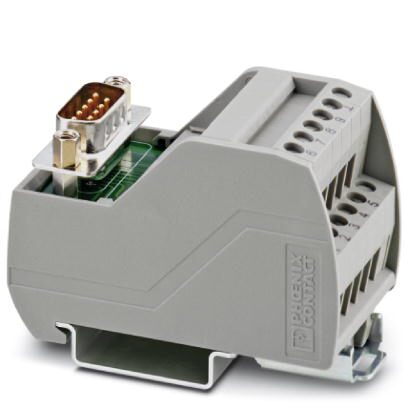

Phoenix Contact VIP2SCD9SUBM Interface Module
The PHOENIX CONTACT VIP-2/SC/D 9SUB/M interface module is a versatile component designed to facilitate connections between field-level devices and controller systems. It is specifically engineered for mounting on NS 35 rails, offering a secure and organized solution for industrial automation and control applications. The module incorporates a screw connection for reliable electrical contact and a male D-Subminiature pin strip for compatibility with a wide range of controllers. It adheres to standards like IEC 60664, DIN EN 50178, and IEC 62103, ensuring reliable performance and safety. This module is suitable for applications requiring robust and dependable data transmission and control signal routing.
Phoenix Contact VIP2SCD9SUBM Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 88.5 g
- Custom tariff number: 85369010
- Country of origin: United States
- Width: 34.7 mm
- Height: 65.5 mm
- Depth: 45.1 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. perm. operating voltage: 125 V AC/DC
- Max. perm. current (per branch): 2 A
- Number of positions: 9
- Mounting position: any
- Standards/regulations: IEC 60664, DIN EN 50178, IEC 62103
- Rated surge voltage: 1.2 kV
- Degree of pollution: 2
- Overvoltage category: II
- Connection name (Field level): Field level
- Connection in acc. with standard (Field level): IEC / EN
- Connection method (Field level): Screw connection
- Stripping length (Field level): 8 mm
- Screw thread (Field level): M 3
- Conductor cross section solid (Field level): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Field level): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Field level): 24 ... 12
- Connection name (Controller level): Controller level
- Connection method (Controller level): D-SUB pin strip
- Number of connections (Controller level): 1
- Number of positions (Controller level): 9
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- eCl@ss 9.0: 27141152
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
- CSA mm²/AWG/kcmil: 28-14
- CSA Nominal current IN: 2 A
- CSA Nominal voltage UN: 105 V
- UL Recognized mm²/AWG/kcmil: 30-12
- UL Recognized Nominal current IN: 2 A
- UL Recognized Nominal voltage UN: 125 V
- cUL Recognized mm²/AWG/kcmil: 30-12
- cUL Recognized Nominal current IN: 2 A
- cUL Recognized Nominal voltage UN: 125 V
