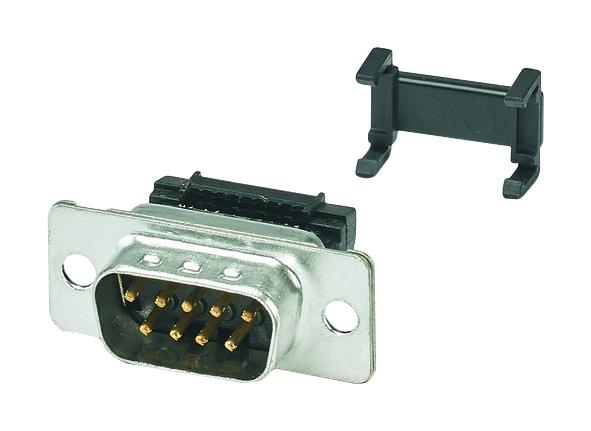

Phoenix Contact VS09STDSUBFK D-Sub Connector
The D-SUB contact insert features a shell size 1 design with nine signal contacts, suitable for flat-ribbon cable connections, and offers reliable panel mounting. Made with copper alloy contacts plated in hard gold over nickel, and housed in steel, tin-plated casing, it operates within a temperature range of -55°C to 125°C. The compact dimensions include a width of 18.5mm, height of 31.19mm, and length of 12.93mm, ensuring efficient integration into various electrical and control systems. It is FLAMMABILITY RATED UL 94 VO and conforms to industry standards for safety and durability.
Phoenix Contact VS09STDSUBFK D-Sub Connector Specifications:
- Connection method: Flat-ribbon cable connection
- Overvoltage category: mM
- Degree of pollution: 2
- Weight: 7.159 g
- Flammability rating according to UL 94: VO
- Ambient temperature (operation): -55°C to 125°C
- Contact surface material: Hard gold-plated over nickel
- Contact material: Copper alloy
- Housing material: Steel, tin-plated
- Width: 18.5 mm
- Height: 31.19 mm
- Length: 12.93 mm
- Number of positions: 9
- Rated current: 1.5 A at 20°C
- Rated voltage: Not specified, but conforms to industry standards
- Test voltage: Not specified
- Standards: UL 94 VO flammability rating
- Mounting type: Hole-based panel mounting
Buy the Phoenix Contact VS-09-ST-DSUB-FK – Reliable D-Sub Connector for Industrial Applications
Secure your electrical and control systems with the D-Sub connector from Phoenix Contact. Featuring nine signal contacts, flat-ribbon cable connection, and robust steel housing, it offers excellent durability and reliability. Designed for panel mounting, it operates from -55°C to 125°C and meets UL 94 VO flammability standards. Ideal for industrial, automation, and equipment wiring applications, this compact connector ensures safe, efficient, and long-lasting performance functional in various challenging environments. Purchase now online for seamless integration.
Buy Phoenix Contact VS-09-ST-DSUB-FK now and experience unmatched reliability and high-performance connections suitable for industrial applications.
Frequently Asked Questions
Where can I buy Phoenix Contact VS09STDSUBFK?
You can click on the BUY or RFQ button to purchase VS09STDSUBFK from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part VS09STDSUBFK?
You can download the VS09STDSUBFK datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of VS09STDSUBFK?
Phoenix Contact
