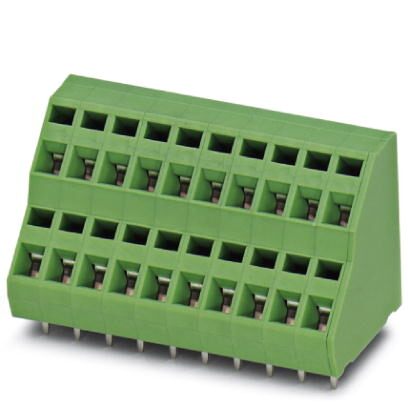

Phoenix Contact ZFKKDS15508 PCB Terminal Block

This PCB terminal block supports a maximum current of 12 A and operates at 400 V, complying with standards for safe electrical connections. It features a 5.08 mm pitch, a single position with a spring-cage connection method, and is suitable for wave soldering. The green-colored terminal includes a solder pin length of 3.5 mm, with a connection angle of 45°. Its compact design allows for high contact density, with conductor cross-sections ranging from 0.2 mm² to 2.5 mm² (solid) and 0.2 mm² to 1.5 mm² (flexible). The insulator is made of PA with UL 94 V-0 flammability rating, ensuring safety and durability. Connections follow EN-VDE standards, supporting multiple conductor types and configurations.

View ZFKKDS15508Datasheet [pdf]

Buy the Phoenix Contact Series ZFKKDS PCB Terminal Block: ZFKKDS15508

Order the Phoenix Contact PCB terminal block ZFKKDS15508 online today and benefit from high-quality electrical connections rated for 12 A and 400 V. Featuring a 5.08 mm pitch and spring-cage connection, it ensures secure, long-term stability for your PCB assemblies. Suitable for wave soldering, with a 45° connection angle and UL 94 V-0 rated insulator, this terminal block supports flexible conductor ranges from 0.2 to 2.5 mm² solid and 0.2 to 1.5 mm² flexible. Buy now to ensure dependable, safe, and efficient wiring in your electronics projects and industrial applications.

Buy Phoenix Contact ZFKKDS15508 now and experience reliable, compact PCB connections with high contact density and easy wave soldering mounting.
