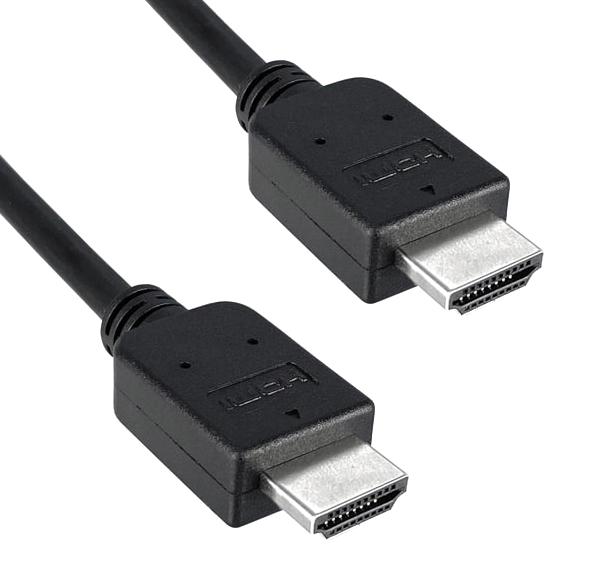

QUALTEK ELECTRONICS 172101316 HDMI Cable
This HDMI A to HDMI A cable assembly features nickel-plated connectors with a length of 16 feet, designed for high-quality video and audio transmission. It uses 26 AWG wire, ensuring reliable connectivity and minimal signal loss. The cable complies with UL20276 standard, has a characteristic impedance of 100 ohms, and is suitable for low voltage computer and AV applications. Its molded black outer jacket provides durability and flexibility for professional and consumer use, supporting 80°C and 30V ratings. The cable undergoes comprehensive electrical testing, including open short, insulation resistance, and conductor resistance tests, guaranteeing performance quality.
QUALTEK ELECTRONICS 172101316 HDMI Cable Specifications:
- Connector Type: HDMI A to HDMI A
- Wire Gauge: 26 AWG
- Length: 16 feet (4.88 meters)
- Outer Jacket Diameter: 8.0 ± 0.2 mm
- Material: Nickel-plated connectors, black molded PVC outer jacket
- Impedance: 100 ohms
- Temperature Rating: 80°C
- Voltage Rating: 30V
- Compliance: UL20276, VW-1 flame rated
- Testing: 100% open, short, miswire test; insulation resistance DC400V 10M ohms min; conductor resistance max 1 ohm
- Prints: 'E166307 AX AWM 20276 28AWG 80°C 30V VW-1 LOW VOLTAGE COMPUTER CABLE'
- Connectors: Nickel-plated HDMI male to HDMI male, molded black hood
- Inner Materials: Copper foil, PBT/black insulators
- Packaging: 1 piece per polybag
Buy the CyberLink Series HDMI Cable: 172101316
Experience seamless high-definition video and audio with our 16-foot HDMI Cable featuring nickel-plated connectors for durability and excellent signal quality. Suitable for professional and personal use, it complies with UL20276 standards, ensuring safety and reliability. The robust black outer jacket provides flexibility and protection during installation. With rigorous electrical testing and high-quality materials, this cable guarantees optimal performance, minimal signal loss, and long-lasting durability. Enhance your AV setup today by purchasing this premium HDMI cable online for reliable, high-quality digital connections.
Order your CyberLink Series HDMI Cable 172101316 today and enjoy high-performance digital connectivity for your entertainment and professional setups.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 172101316?
You can click on the BUY or RFQ button to purchase 172101316 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 172101316?
You can download the 172101316 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 172101316?
QUALTEK ELECTRONICS
