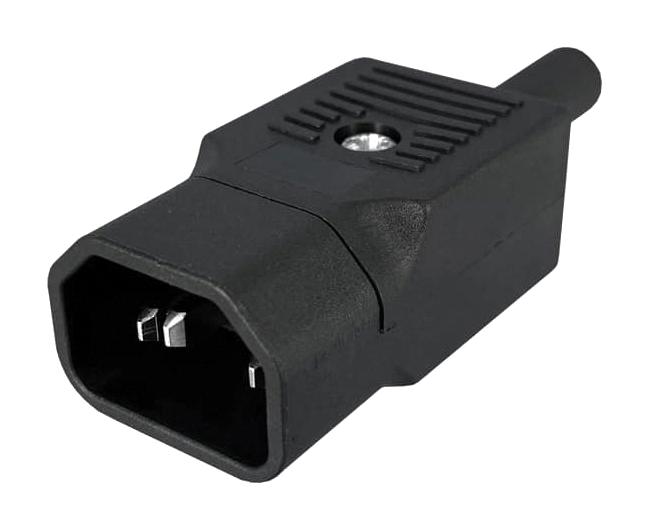

QUALTEK ELECTRONICS 7120000 AC Power Plug Assembly
This AC power plug assembly features a straight entry design with screw terminals, rated for 10A at 250V AC. Made from nylon with UL 94V-0 flammability rating, it includes brass contacts that are nickel-plated for durability and corrosion resistance. The device supports operating temperatures from approximately 40°C to 70°C and has a withdrawal force of 10N minimum and 50N maximum. It is RoHS compliant, UL, CSA, and VDE approved, suitable for various electrical applications requiring reliable and compliant power connections.
QUALTEK ELECTRONICS 7120000 AC Power Plug Assembly Specifications:
- Max Rating: 10A 250V AC
- Material: Nylon, flammability rating UL 94V-0
- Contacts: Brass, nickel-plated
- Operating Temperature: ~40°C to +70°C
- Withdrawal Force: 10N minimum, 50N maximum
- Approval: UL, CSA, VDE
- RoHS Compliant
- Cable Compatibility: Suitable for 18 AWG cordage
- Contact Resistance: Less than 10 milliohm
- Insulation Resistance: Greater than 1,000 megohms
- Dielectric Withstanding Voltage: 6.5 kV pole-to-pole
- Flammability: UL 94V-0
- Mounting: Rewirable plug assembly
- Connector Style: Straight entry with screw terminals
Buy the Qualtek Series AC Power Plug: 712-00/00
Order the Qualtek Series AC Power Plug Assembly online today. Featuring a durable nylon construction, brass contacts, and compliance with UL, CSA, and VDE standards, this 10A 250V rated plug ensures safe, reliable power connections. Its straight entry design with screw terminals makes installation straightforward. Suitable for various electrical setups, it supports operating temperatures up to 70°C and is RoHS compliant. Enhance your electrical systems with this high-quality, trusted power plug—ordering online provides fast delivery and competitive pricing.
Buy Qualtek 712-00/00 now and experience unmatched reliability and performance in electrical connections.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 7120000?
You can click on the BUY or RFQ button to purchase 7120000 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 7120000?
You can download the 7120000 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 7120000?
QUALTEK ELECTRONICS
