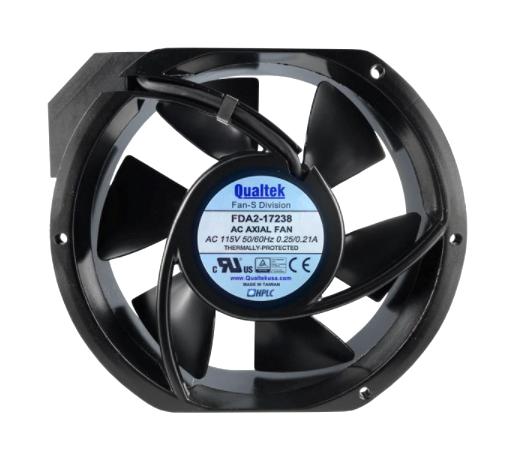

QUALTEK ELECTRONICS FDA217238NBHT4F AC Axial Fan
This FDA2-17238 series 240 CFM AC axial fan offers reliable airflow with robust construction and efficient operation. Operating at 115V AC and 50/60Hz, it features dual ball bearings for extended durability and a capacitor-run external rotor motor for consistent performance. The fan's aluminum alloy frame and plastic or steel impeller ensure sturdy support while maintaining a lightweight design. It is IP54 rated, providing protection against dust and water splashes, making it suitable for various industrial and electronic cooling applications. Its life expectancy is approximately 50,000 hours, ensuring long-term reliability.
QUALTEK ELECTRONICS FDA217238NBHT4F AC Axial Fan Specifications:
- Motor: External Rotor Capacitor-Run Induction Motor
- Bearing Type: Two Ball
- Frame Material: Aluminum Alloy
- Impeller Material: Plastic UL94V-0, or Steel
- Protection: IP54 Certified
- Operating Temperature: -20°C to 70°C
- Life Expectancy: 50,000 Hours (standard), 100,000 Hours (-L)
- Voltage: 115V AC, 230V AC
- Frequency: 50/60Hz
- Current: 0.25A / 0.21A at 115V, 0.11A / 0.12A at 230V
- Power: 27W / 25W at 115V, 26W / 27W at 230V
- Speed: 2700/3100 RPM
- Airflow: 210/240 CFM
- Static Pressure: 0.531/0.571 inAq
- Noise Level: 53/59 dB
- Weight: 820 grams
- Connection: Terminal or UL 1015 AWG 22, 300mm wire leads
Buy the Qualtek Series FDA2 AC Axial Fan: FDA217238NBHT4F
Enhance your cooling system with the reliable FDA2-17238 series AC axial fan. Featuring a robust aluminum alloy frame, dual ball bearings, and IP54 rating, this fan ensures long-lasting performance in dust and water-prone environments. Operating at 115V AC on 50/60Hz, it delivers effective airflow of up to 240 CFM while maintaining low noise levels. Perfect for industrial electronics, HVAC, or equipment cooling, this fan's durable construction and 50,000-hour lifespan provide peace of mind. Purchase online now for dependable performance.
Order your Qualtek Series FDA2 axial fan today and ensure reliable airflow with durable materials and long lifespan for your cooling needs.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS FDA217238NBHT4F?
You can click on the BUY or RFQ button to purchase FDA217238NBHT4F from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part FDA217238NBHT4F?
You can download the FDA217238NBHT4F datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of FDA217238NBHT4F?
QUALTEK ELECTRONICS
