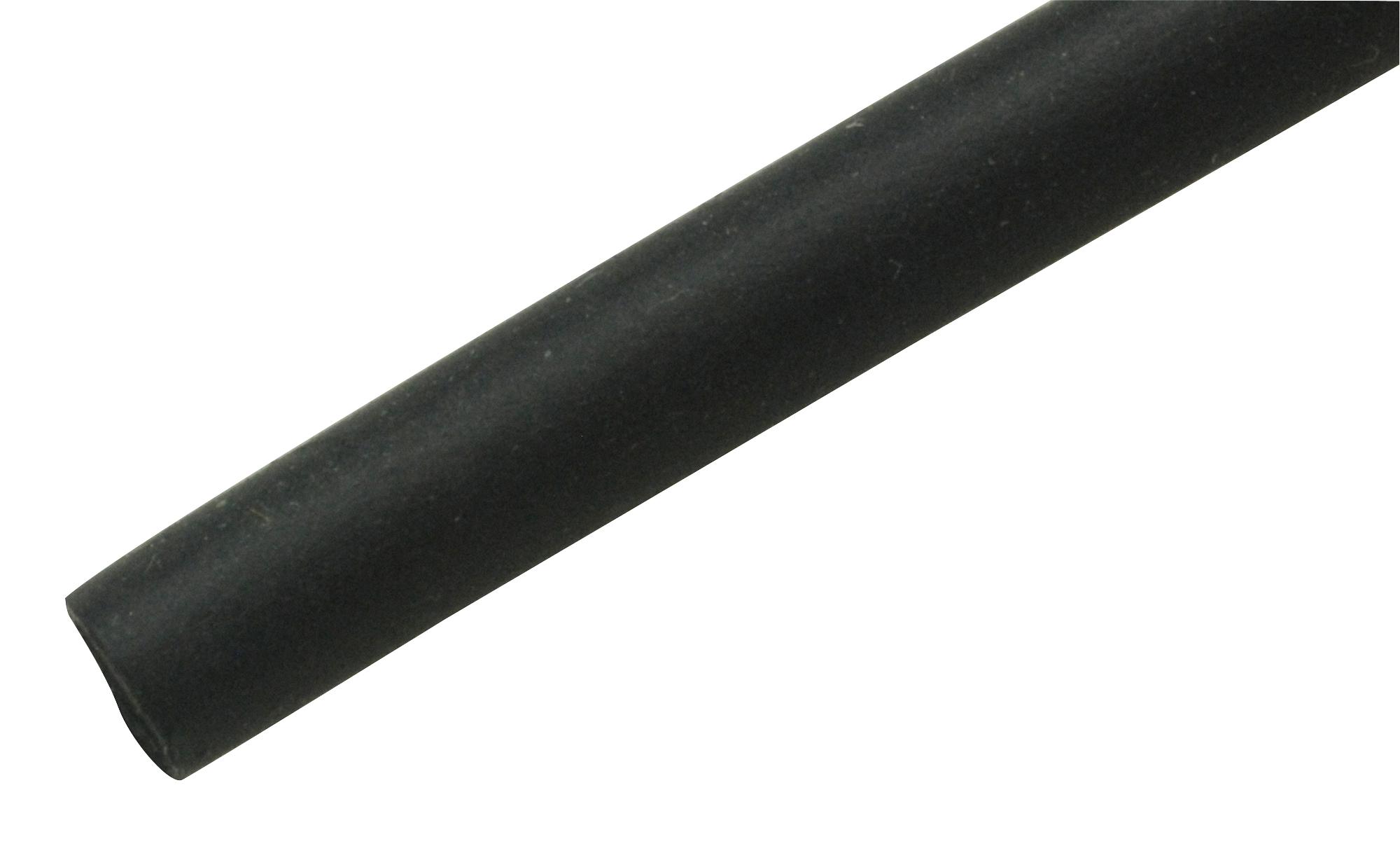

QUALTEK ELECTRONICS Q2F1201MS100FT Heat Shrink Tubing
Flexible heat shrink tubing suitable for electrical insulation, environmental protection, wire bundling, and color coding in both commercial and military applications. Operating within -55°C to +135°C, it offers high tensile strength (>14 MPa), excellent elongation (>600%), and meets numerous standards including UL 224 and RoHS compliance. The tubing is flame-retardant, halogen-free, and available in multiple standard colors. It provides reliable dielectric properties, low shrinkage, and copper stability. Designed for easy installation, it shrinks at elevated temperatures and maintains integrity under demanding conditions, making it critical in wiring and component protection.
QUALTEK ELECTRONICS Q2F1201MS100FT Heat Shrink Tubing Specifications:
- Material: No PBB's, PBBO's, PBBE’s, free of cadmium and lead
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Dielectric Strength: >20kV/mm
- Voltage Withstand: AC 2500V for 4 min. no breakdown
- Volume Resistance: >10^Q.cm
- Flammability: Passes VW-1 and UL 224 flammability tests
- Colors: Black, red, blue, yellow, green, white, clear (class 2)
- Shrink Ratio: 2:4
- Wall Thickness: ranged from 0.40 mm to 0.68 mm depending on size
- Dimensions: inner diameter from 6 mm to 159 mm, length up to 1000 ft
- Availability: Various sizes with standard packaging options
Buy the Buy Qualtek Heat Shrink Thin Wall Tubing Part Number Q2F1201MS100FT Online
Purchase the durable and flexible heat shrink tubing series Q2F1201MS100FT online now. It provides excellent electrical insulation, flame retardancy, and environmental protection, suitable for industrial, military, and electrical applications. This versatile tubing withstands high temperatures up to +135°C, shrinks reliably at 100°C, and maintains its integrity under stress. Available in various sizes, colors, and lengths, it’s your ideal solution for wire bundling, insulation, and component protection. Shop now for quick delivery and quality assured performance.
Order your Qualtek SeriesQ2F1201MS100FT heat shrink tubing today and enhance your electrical insulation with reliable and high-quality protection for all your wiring needs.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F1201MS100FT?
You can click on the BUY or RFQ button to purchase Q2F1201MS100FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F1201MS100FT?
You can download the Q2F1201MS100FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F1201MS100FT?
QUALTEK ELECTRONICS
