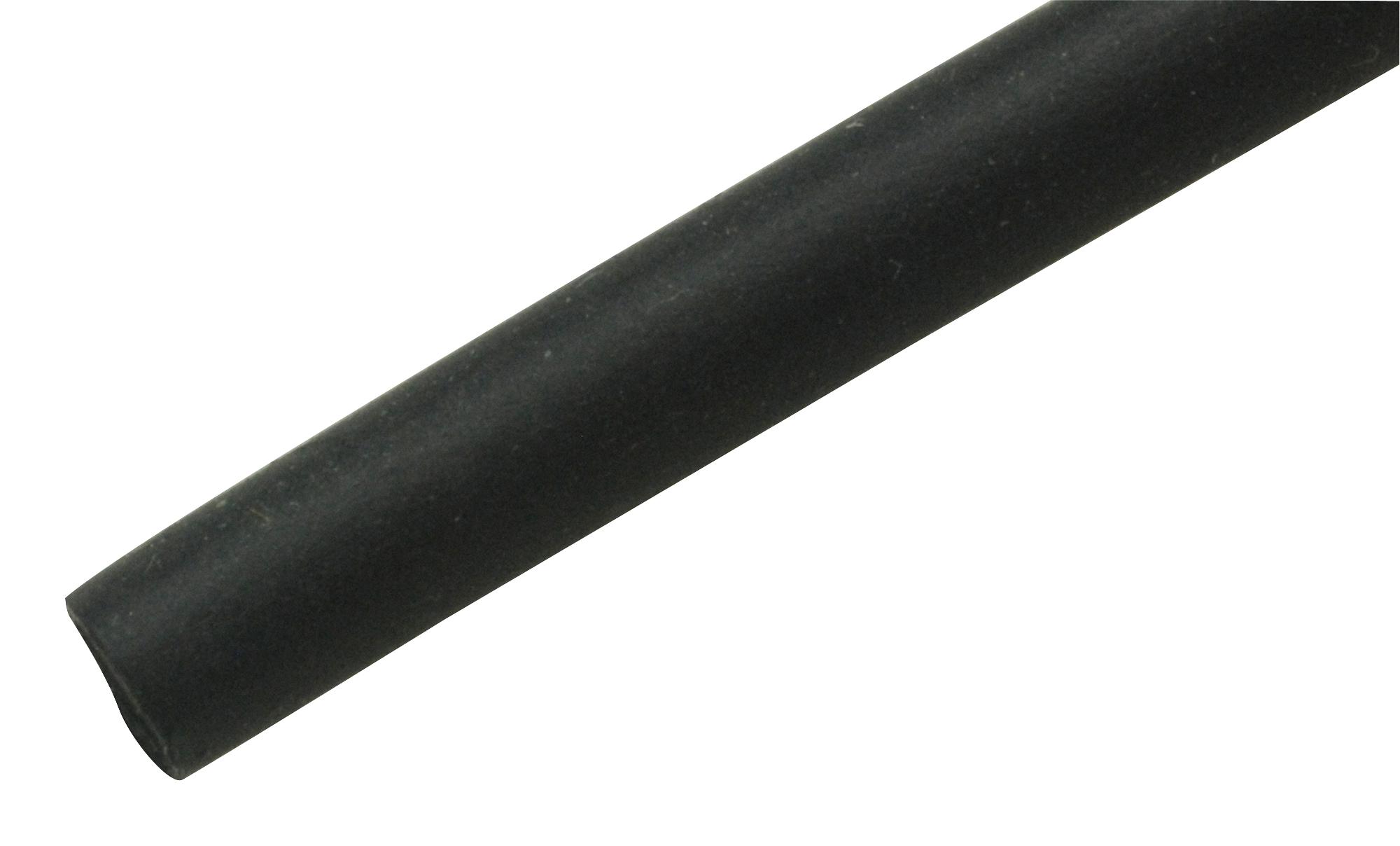

QUALTEK ELECTRONICS Q2F1201SS200FT Heat Shrink Tubing
Heat shrink thin wall tubing offers excellent electrical insulation, mechanical protection, and environmental resilience suitable for military and commercial wiring needs. With a shrink ratio of 2:4, it recovers fully at 100°C and operates effectively from -55°C to +135°C. Made without PBBs, PBBOs, PBBEs, and free of Cadmium and Lead, the tubing is RoHS compliant and meets stringent standards including UL, VW-1, SAE, and Sony. Available in standard colors like black, red, blue, yellow, green, white, and clear, it enhances wire identification and bundling in various applications.
QUALTEK ELECTRONICS Q2F1201SS200FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Shrink Temperature: 70°C (minimum), 100°C (full recovery)
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Dielectric Strength: >20kV / mm
- Volume Resistance: >10^9 Ω·cm
- Eccentricity: <30%
- Flammability: Passes vw-t test
- Wall Thickness: 0.40 mm to 0.68 mm across sizes
- According to UL 224, UL 224, ASTM D 2671, IEC 216 standards
- Material: Flame retardant, no PBBs, PBBOs, or PBBEs, free of cadmium and lead
- Color options: Black, red, blue, yellow, green, white, clear
- Voltage Rating: 600V, meets SAE-AMS-DTL-23053/5 Class 1 & 3
- Shrink Ratio: 2:4
- Full recovery temperature: 100°C
- Approvals: UL, VW-1, RoHS compliant
Buy the Heat Shrink Tubing Series Q2F: Q2F1201SS200FT
Purchase the Qualtek Series Q2F1201SS200FT heat shrink tubing online today to benefit from reliable insulation, effective environmental protection, and easy wire management. This flexible, flame-retardant tubing is designed for diverse electrical and industrial applications, providing excellent resilience across temperature ranges from -55°C to +135°C. Its high strength, superior elongation, and RoHS compliance make it ideal for commercial and military use, offering ease of installation and long-lasting performance. Secure your supply now and enhance your wiring projects with top-quality heat shrink solutions.
Order your Qualtek Series Q2F1201SS200FT heat shrink tubing today and ensure durable, high-quality wire insulation for your electrical projects.
