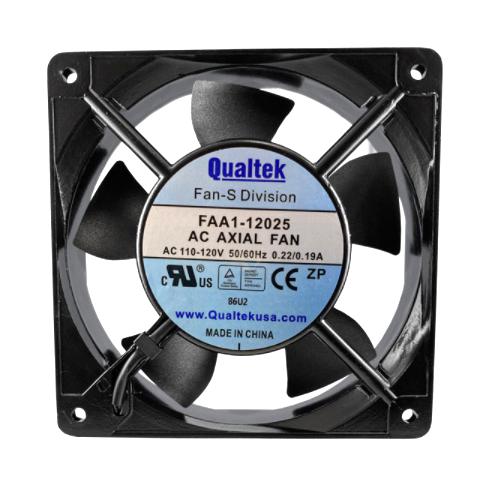

QUALTEK ELECTRONICS FAA112025NBMW31 axial fan
This medium-speed AC axial fan provides reliable cooling with an airflow capacity of 71 CFM, operating on 115VAC at 50/60Hz. Equipped with a shaded pole induction motor that is impedance protected, it features a durable aluminium alloy frame and a UL94V-0 plastic impeller. The fan uses UL 1430 AWG 22 wire leads (280mm) for easy connections and has a lifespan of approximately 50,000 hours with two-ball bearing technology, making it suitable for continuous operation in electronic and industrial applications. It maintains efficient performance across operating temperatures from -10°C to 70°C with a noise level of around 38.7 to 44.1 dB.
QUALTEK ELECTRONICS FAA112025NBMW31 axial fan Specifications:
- Fan size: 120x120x25mm
- Operating Voltage: 115VAC
- Frequency: 50/60Hz
- Current: 0.22A (50Hz), 0.18A (60Hz)
- Power: 26.45W (50Hz), 20.70W (60Hz)
- Speed: 2200/2300 RPM
- Airflow: 1.839/2.009 CMM (65.0/71.0 CFM)
- Static Pressure: 0.130/0.156 InAq (3.302/3.962 mmAq)
- Noise Level: 38.7/44.1 dB
- Material Frame: Aluminum alloy
- Impeller Material: Plastic UL94V-0
- Bearing Type: Two-ball
- Motor: Shaded pole induction motor, impedance protected
- Wire Leads: UL 1430 AWG 22, 280mm length
- Life Expectancy: 50,000 hours for two-ball bearing; 30,000 hours for sleeve bearing
- Temperature Range: -10°C to 70°C
- Weight: 340 grams
Buy the Qualtek Series FAA1 Axial Fan: FAA112025NBMW31
Purchase the Qualtek FAA112025NBMW31 axial fan online and ensure optimal cooling for electronic enclosures, industrial equipment, or HVAC systems. With a robust aluminum frame, UL94V-0 plastic impeller, and a lifespan of 50,000 hours, this fan delivers consistent performance. Its impedance protected shaded pole motor guarantees durability and reliable operation across a wide temperature range from -10°C to 70°C. Easy to connect via UL 1430 AWG 22 wire leads, this fan is an essential component for maintaining efficient airflow and preventing overheating in your equipment. Buy now for dependable cooling performance!
Get Qualtek FAA112025NBMW31 today—built for reliable cooling and long-lasting durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS FAA112025NBMW31?
You can click on the BUY or RFQ button to purchase FAA112025NBMW31 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part FAA112025NBMW31?
You can download the FAA112025NBMW31 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of FAA112025NBMW31?
QUALTEK ELECTRONICS
