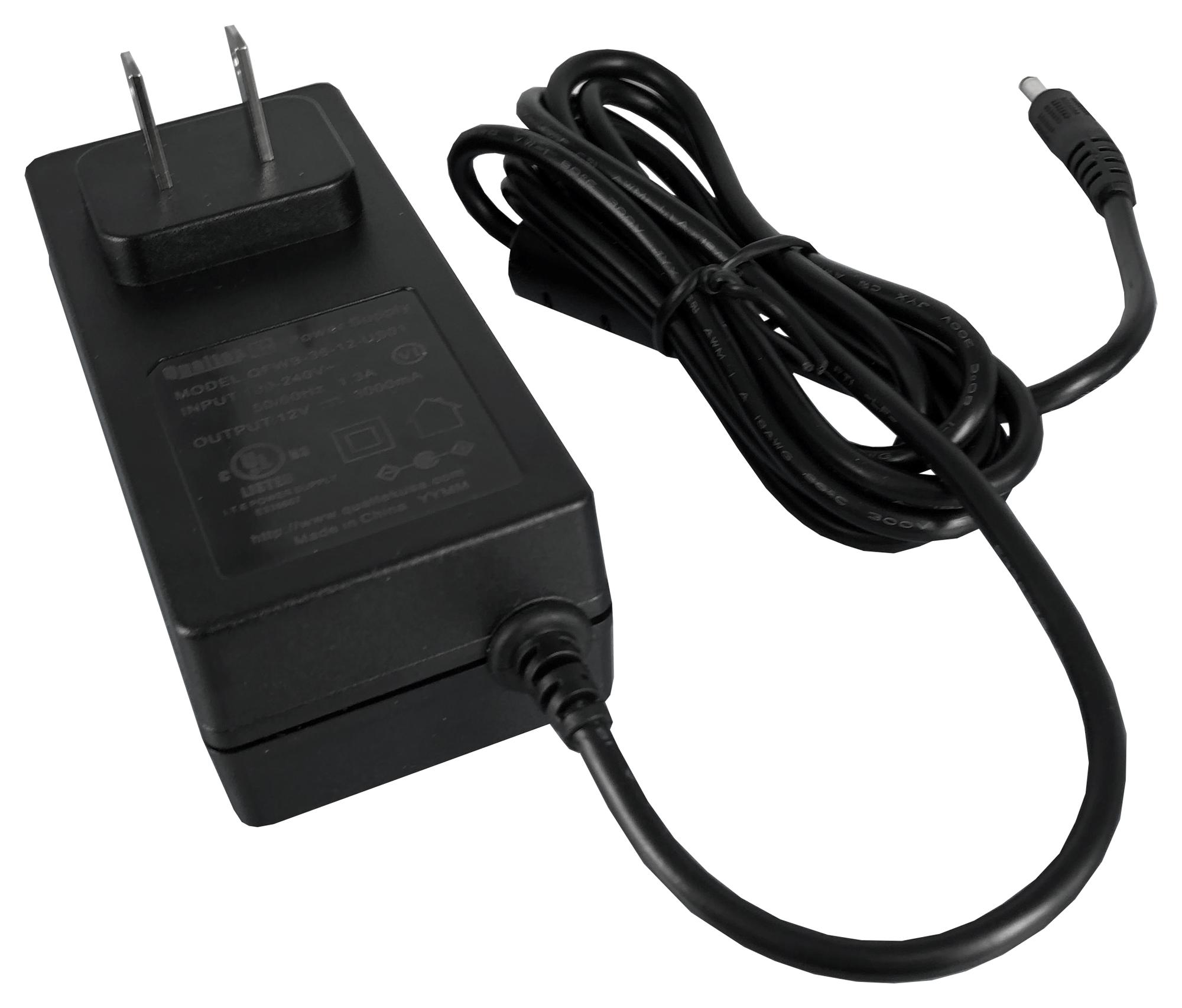

QUALTEK ELECTRONICS QFWB3612US01 Power Supply Unit
The 36 Watts Single Output Wall Mount Power Supply provides efficient, reliable energy with universal AC input and energy-saving features. It offers multiple output voltages including 5.9V, 12V, 15V, 18V, 24V, and 36V, with rated currents up to 5A. Designed for industrial and commercial applications, it features short circuit and overcurrent protection, low no-load consumption, and compliance with energy efficiency standards. Its compact size and robust construction make it ideal for space-constrained environments, supporting continuous operation in temperature ranges 0°C to 40°C and humidity up to 80%.
QUALTEK ELECTRONICS QFWB3612US01 Power Supply Unit Specifications:
- Input Voltage Range: 100VAC~240VAC
- Input Frequency Range: 50Hz-60Hz
- Output Power: 36 Watts
- Output Voltages: 5.9V, 12V, 15V, 18V, 24V, 36V
- Rated Current: up to 5A at certain voltages
- Ripple and Noise: Max 200mV
- Efficiency: DoE Level VI, Energy Star
- Turn On Delay: Max 3 seconds
- Hold-up Time: Typical 20ms at 230VAC
- Protection: Short Circuit, Over Current
- Operating Temperature: 0°C to 40°C
- Operating Relative Humidity: 10% to 80% RH
- Dimensions: 197.14 x 45.14 x 32 mm
- Weight: 180g
- EMI: EN55022 Class B, FCC Part 15 Class B
- MTBF: 50,000 hours
- Dielectric Withstand: 3000VAC
Buy the Qualtek Series QFWB 36 Watts Power Supply: QFWB3612US01
Purchase the high-quality Qualtek power supply unit online today and enjoy reliable energy delivery with multiple output voltages, high efficiency, and essential protections. Designed for industrial and commercial environments, this 36W power supply features universal AC input, low no-load power consumption, and robust certifications. Its compact size ensures easy integration into space-constrained setups, while its advanced features guarantee long-lasting durability and consistent performance. Order now to benefit from quick shipping and dedicated customer support, ensuring your project or equipment operates seamlessly.
Get Qualtek QFWB3612US01 today—built for efficiency, reliability, and space-saving power conversion for demanding industrial applications.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS QFWB3612US01?
You can click on the BUY or RFQ button to purchase QFWB3612US01 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part QFWB3612US01?
You can download the QFWB3612US01 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of QFWB3612US01?
QUALTEK ELECTRONICS
