RALTRON A800018 Microprocessor Crystal
The A-8.000-18 is a standard microprocessor crystal that features a wide frequency range and comes with through-hole mounting. It serves as an excellent clock signal generator for CPUs, providing reliable timing signals. The crystal has a shunt capacitance of 7 pF and is suitable for applications in clock and timing circuits, as well as industrial timing systems.
RALTRON A800018 Microprocessor Crystal Specifications:
- Frequency Range: 100.00 KHz to 300.00 MHz
- Holder Types: HC-49/U, HC-51/U, UM-1
- Operating Temperature Range: -20°C to +70°C (Standard), -40°C to +85°C (Extended)
- Storage Temperature Range: -55°C to +125°C
- Aging: +5 PPM per year maximum
- Load Capacitance: 10 to 32 pF or series
- Shunt Capacitance: 7 pF maximum
- Drive Level: 0.1 mW typical, 1 mW maximum
- Frequency Tolerance at 25°C: 430 PPM typical, +50 PPM maximum
- Frequency Stability over Temperature: 450 PPM typical, +100 PPM maximum
- Equivalent Series Resistance: varies by frequency and package, see datasheet
- Package Options: Tape and reel, three-pin base, spacer sleeve, spin
- Mechanical Dimensions: length approximately 15 mm, maximum diameter 8 mm, mounting hole diameter 1.2 mm
- Shock Resistance: 75 cm drop test in 3 axes or 1000 g's x 0.5 ms sine wave in 3 axes

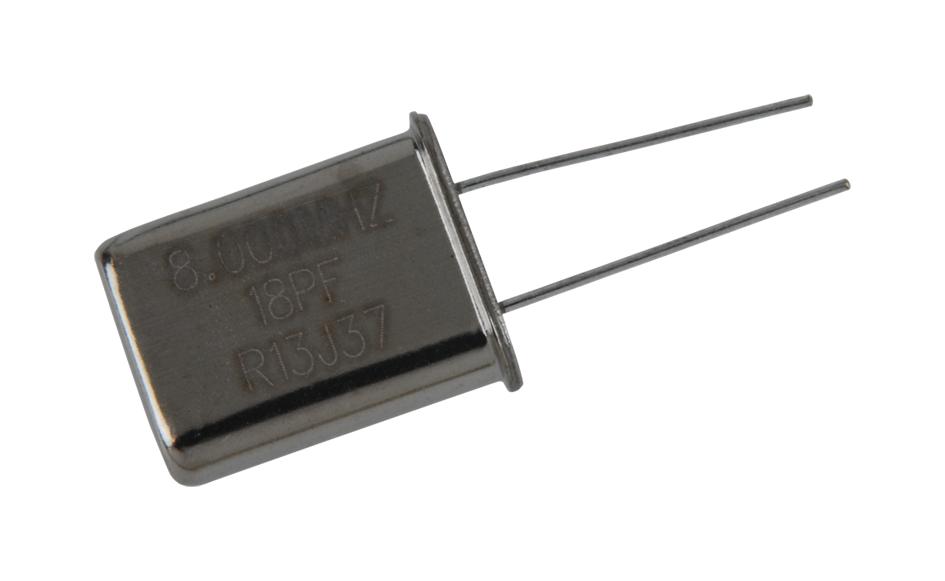

Buy the Buy RAMi TECHNOLOGY Microprocessor Crystal Part Number A800018 Online
Purchase the RAMi TECHNOLOGY A800018 microprocessor crystal online today. Designed for precise timing and clock signal generation, it offers a wide frequency range from 100 KHz to 300 MHz. With robust shock resistance and stability over temperature, this crystal ensures reliable operation in industrial, computing, and timing circuits. Its through-hole mounting and versatile package options make integration into various systems simple. Order now for fast delivery and improve your circuit’s performance with this dependable timing component.
Buy RAMi TECHNOLOGY A800018 now and experience reliable clock signals for high-performance timing applications.
Frequently Asked Questions
Where can I buy RALTRON A800018?
You can click on the BUY or RFQ button to purchase A800018 from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part A800018?
You can download the A800018 datasheet or visit the RALTRON website for support.
Who is the manufacturer of A800018?
RALTRON
