RALTRON AS9830418 Microprocessor Crystal
The low profile microprocessor crystal is designed for high-frequency clock generation in CPU applications, offering a compact 3.5 mm height with extended temperature range options. It features fundamental and third overtone modes, with frequencies spanning from 3.500 MHz to 70.000 MHz, including standard tolerances of +30 PPM and stability over temperature up to ±50 PPM. The crystal's durable construction supports shock resistance, reflow soldering, and RoHS compliance, making it ideal for space-constrained, high-performance computing and industrial environments.
RALTRON AS9830418 Microprocessor Crystal Specifications:
- Frequency Range: 3.500 MHz to 70.000 MHz
- Fundamental Modes: 3.500 MHz to 40.320 MHz
- Overtone Modes: 24.576 MHz to 70.000 MHz
- Frequency Tolerance: +30 PPM (standard), +10, +20, +50 PPM available
- Temperature Range: -20°C to +70°C (standard), extended options available
- Stability over temperature: ±50 PPM (standard), ±35 PPM max aging per year
- Load Capacitance: 10 pF to 32 pF, series resonance
- Shunt Capacitance: Max 7.0 pF
- Drive Level: 500 microWatts max
- Shock Resistance: 3 axes, on hard surface
- Reflow Temperature: 260°C ±5°C for 10 seconds
- RoHS Compliant, Lead-free with Sn finish
- Moisture Sensitivity Level: 1

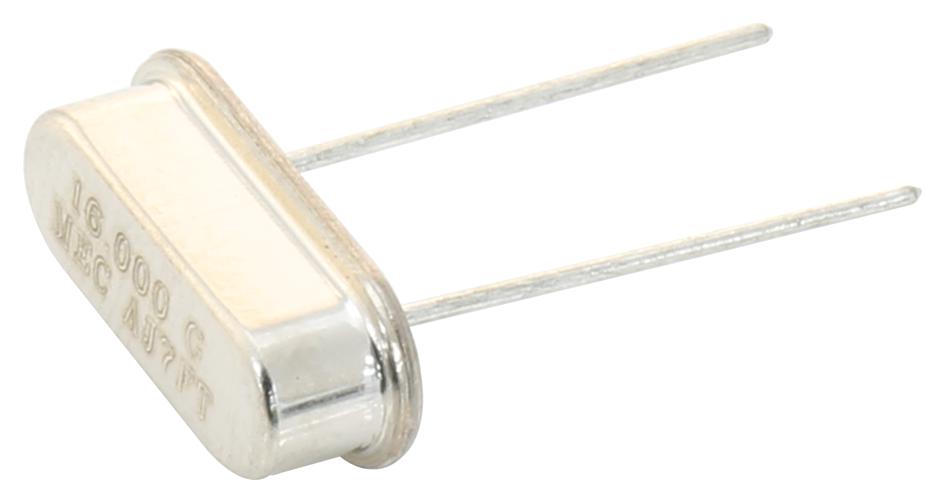

Buy the Buy Rami Tech Low Profile Microprocessor Crystal Part Number AS9830418 Online
Purchase the high-performance Rami Tech low profile microprocessor crystal online today to secure precise clock signals for CPU and industrial applications. With frequencies from 3.5 to 70 MHz, it features extended temperature range support, shock resistance, RoHS compliance, and a compact design perfect for space-constrained environments. Designed for durability with lead-free Sn termination and reflow soldering compatibility, this crystal ensures long-term stability and reliable operation in demanding conditions, making it an ideal choice for modern electronic projects and industrial equipment.
Order your Rami Tech Series AS9830418 low profile microprocessor crystal today and ensure reliable high-frequency clock generation with space-saving design and extended temperature stability.
Frequently Asked Questions
Where can I buy RALTRON AS9830418?
You can click on the BUY or RFQ button to purchase AS9830418 from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part AS9830418?
You can download the AS9830418 datasheet or visit the RALTRON website for support.
Who is the manufacturer of AS9830418?
RALTRON
