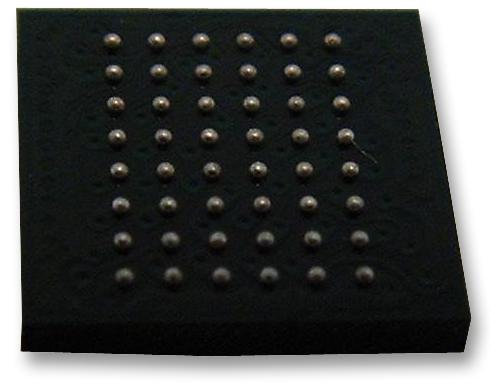

RENESAS RMLV0416EGBG4S2AC0 Static RAM
The RMLV0416E Series offers a 4Mb static RAM with organized 262,144 words x 16 bits, fabricated by Renesas with high-performance advanced LPSRAM technology. It features low power consumption, suitable for battery-powered systems, with a single 3V supply (2.7V to 3.6V), and a maximum access time of 45ns. Available in 44-pin TSOP (II) and 48-ball FBGA packages, it supports low standby current (0.4μA) and provides direct TTL compatibility for versatile industrial applications. Its reliable operation under wide temperature ranges ensures efficient performance in demanding environments.
RENESAS RMLV0416EGBG4S2AC0 Static RAM Specifications:
- Memory Organization: 262,144 words x 16 bits
- Supply Voltage: 2.7V to 3.6V
- Maximum Access Time: 45ns
- Standby Current: 0.4μA (typ.)
- Operating Temperature: -40°C to +85°C
- Package Types: 44-pin TSOP (II), 48-ball FBGA
- Pin Count: 44 pins (TSOP), 48 pins (FBGA)
- Datasheet Rev: 2.00
- Memory Technology: Advanced Low Power SRAM
- Data Retention: Supported with low power standby modes
- Direct TTL Compatibility: Yes
- Control Pins: CS1#, CS2, OE#, WE#, LB#, UB#
- Power Dissipation: 0.7 W (max.)
- Input Voltage: Vih: 0.7 x Vcc, Vil: 0.3 x Vcc
- Input/Output Capacitance: 8 pF (input), 10 pF (I/O)
- Additional Features: Low power dissipation, reliable for industrial use
- Package Dimensions: As per package type specifications
Buy the Renesas RMLV0416E – Reliable Static RAM for Industrial Applications
Purchase the Renesas RMLV0416E static RAM online today to ensure high-speed performance, low power consumption, and reliable operation for industrial and battery backup systems. Featuring a 4Mb organization of 262,144 words by 16 bits, it operates within a wide temperature range of -40°C to +85°C. Its compact TSOP and FBGA packages provide versatile mounting options. Ideal for demanding industrial applications, this RAM guarantees low standby current (0.4μA) and supports direct TTL compatibility, making it an essential component for robust, energy-efficient electronic systems.
Get Renesas RMLV0416E today—built for precision, high speed, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy RENESAS RMLV0416EGBG4S2AC0?
You can click on the BUY or RFQ button to purchase RMLV0416EGBG4S2AC0 from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part RMLV0416EGBG4S2AC0?
You can download the RMLV0416EGBG4S2AC0 datasheet or visit the RENESAS website for support.
Who is the manufacturer of RMLV0416EGBG4S2AC0?
RENESAS
