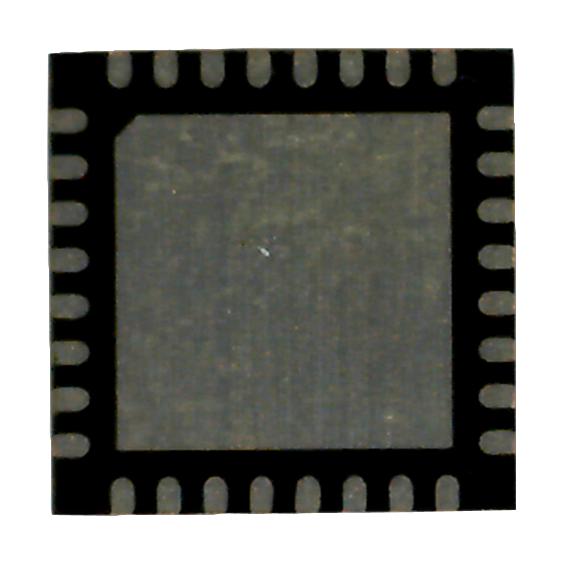

RENESAS 8T49N004A013NLGI Clock Generator
The IDT8T49N0041 is a high-performance programmable clock generator with four outputs supporting LVDS and LVPECL standards. It can generate four distinct frequencies from a single crystal or reference clock, programmable via I2C interface. Utilizing FemtoClock NG PLL technology, it offers excellent phase noise performance with RMS jitter at approximately 175-228 fs, ideal for high-speed applications. It features selectable output styles, configurable frequency options, low duty cycle distortion, and a robust power supply range. Suitable for FPGA, ASIC, and high-speed communication systems requiring precise timing.</string>
RENESAS 8T49N004A013NLGI Clock Generator Specifications:
- Supported output types: LVDS, LVPECL
- Number of outputs: 4
- Operating temperature range: -40°C to 85°C
- Supply voltages: 2.5V or 3.3V
- VCO Range: 1.91GHz - 2.5GHz
- Phase jitter RMS (156.25MHz): 175-228fs (typical)
- Output frequency range: up to 2.5GHz
- Output voltages: LVPECL (Voh: 1.1-1.2V, Vol: 2.0-2.2V), LVDS (247-454 mV differential)
- Power dissipation: approximately 791mW at typical conditions
- Package: 32-Lead VFQFN (5mm x 5mm)
- Data interface: I2C-compatible, supports block read/write
- Jitter performance: compliant with PCI Express standards
- Includes lock indicator for PLL stability
- Designed with high-performance FemtoClock NG PLL technology for low phase noise
Buy the IDT 8T49N004A- Reliable Clock Generator for Industrial Applications
Get the IDT 8T49N004A- programmable four-output clock generator online today and enhance your high-speed, low jitter project requirements. Designed for industrial, FPGA, and ASIC timing needs, it supports LVDS and LVPECL standards with excellent phase noise performance. The device offers configurable frequencies via I2C interface, PLL lock indicator, and operates over industrial temperature ranges. Ensure your system has precise, reliable timing with this versatile clock generator, available for quick delivery from authorized distributors.
Order your IDT series 8T49N004A- today and give your projects the dependable timing solution they deserve, supporting high-speed applications with low jitter.
Frequently Asked Questions
Where can I buy RENESAS 8T49N004A013NLGI?
You can click on the BUY or RFQ button to purchase 8T49N004A013NLGI from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 8T49N004A013NLGI?
You can download the 8T49N004A013NLGI datasheet or visit the RENESAS website for support.
Who is the manufacturer of 8T49N004A013NLGI?
RENESAS
