RENESAS F2913NLGK High Isolation RF Switch
The F2913 is a high isolation, low insertion loss, SP2T absorptive RF switch covering 50MHz to 6000MHz. Designed for wireless infrastructure, it offers high linearity, fast switching, and high power handling with excellent isolation performance. Powered by +2.7V to +5.5V, it supports control logic at 1.8V and 3.3V, making it suitable for 2G to 5G base stations, repeaters, military systems, and RFID readers. Its compact 4mm x 4mm QFN package ensures reliable operation over a wide temperature range from -40°C to +110°C.
RENESAS F2913NLGK High Isolation RF Switch Specifications:
- Frequency Range: 50MHz to 6000MHz
- Insertion Loss: 0.79dB at 2GHz, 0.79dB at 1GHz, 1.15dB at 4GHz
- High Isolation: 71dB at 1GHz, 65dB at 2GHz, 58dB at 4GHz
- Max RF Input Power: 33dBm CW, 36dBm Peak
- Linearity: IIP3 +65dBm at 2.6GHz
- Supply Voltage: +2.7V to +5.5V, compatible with control logic at 1.8V and 3.3V
- Operating Temperature: -40°C to +110°C

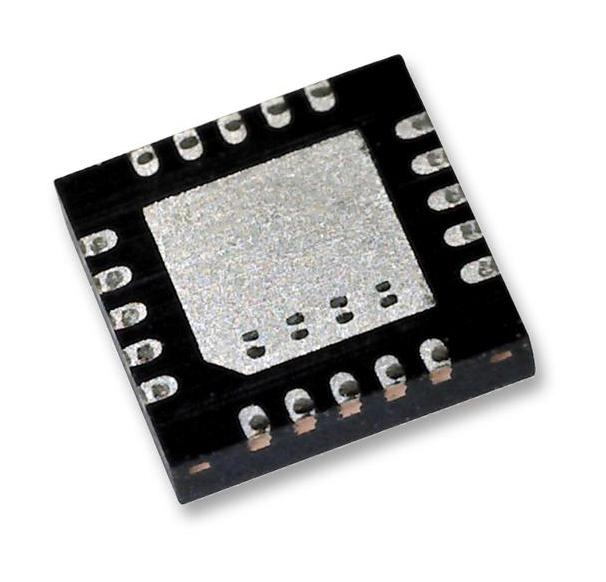

- Package: 4mm x 4mm, 20-VFQFPN
- Junction to Ambient Thermal Resistance: 60.2°C/W
- Maximum Junction Temperature: 140°C
Buy the IDT F2913 – Reliable RF Switch for Industrial Applications
Purchase the IDT F2913 RF switch online today to ensure high performance in your wireless infrastructure projects. This versatile device covers 50MHz to 6000MHz with low insertion loss, high isolation, and excellent linearity. Its compact 4mm x 4mm QFN package makes deployment straightforward in base stations, repeaters, military systems, and RFID applications. Supported by a wide operating temperature range, it provides reliable operation and fast switching for demanding RF environments. Buy now to enhance your system’s RF performance with this proven device designed for industrial use and high-power handling capabilities.
Get IDT F2913 today—built for precision and long-lasting durability in RF and wireless systems.
Frequently Asked Questions
Where can I buy RENESAS F2913NLGK?
You can click on the BUY or RFQ button to purchase F2913NLGK from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part F2913NLGK?
You can download the F2913NLGK datasheet or visit the RENESAS website for support.
Who is the manufacturer of F2913NLGK?
RENESAS
