ROHM 2SAR293P5T100 Middle Power Transistor
The 2SAR293P5T100 is a middle power transistor designed for low-frequency amplifier and driver applications. It features a collector-base voltage of -30V, collector-emitter voltage of -30V, and a maximum collector current of -1A. The device offers a low Vce (sat) of maximum 350mV at -500mA collector current, making it suitable for high-efficiency switching and amplification tasks. Its robust construction ensures reliable performance, with a power dissipation of 2.0W and junction temperature up to 150°C. Compact in size, it fits easily into various circuit designs for industrial and consumer electronics.
ROHM 2SAR293P5T100 Middle Power Transistor Specifications:
- Collector-base voltage VcEo: -30V
- Collector-emitter voltage VecEo: -30V
- Emitter-base voltage Veo: 6V
- Collector current Ic: -1A
- Collector dissipation Pp: 2.0W
- Power dissipation: 2.0W
- Junction temperature Tj: 150°C
- Storage temperature range: -55°C to +150°C
- Transition frequency fT: 320MHz
- Collector cut-off current Icpo: 100nA
- Emitter cut-off current Iego: 100nA
- Collector-emitter saturation voltage Vce (sat): 350mV (max at 500mA)
- DC current gain hFE: 270 - 680
- Collector breakdown voltage BVcgo: -30V
- Collector-emitter breakdown voltage BVceo: -30V
- Rise and fall time: 60ns / 50ns
- Package type: MPT3

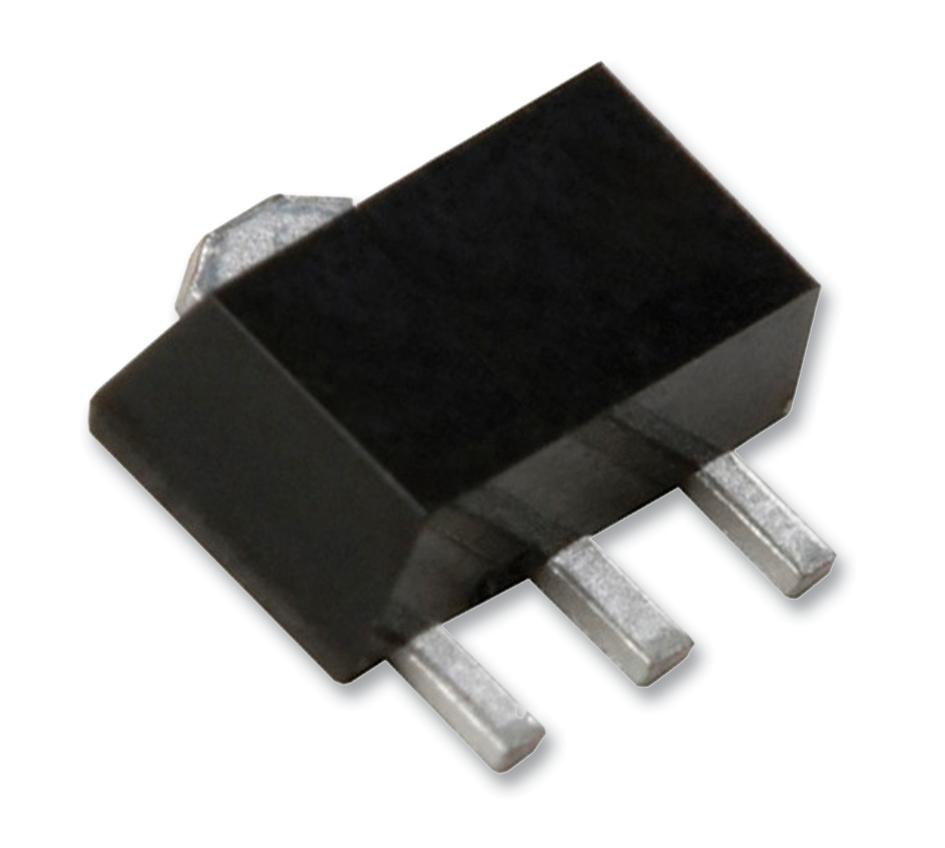

Buy the ROHM 2SAR293P5 U–2013 Reliable Middle Power Transistor for Industrial Applications
Purchase the ROHM 2SAR293P5 transistor online today for reliable performance in low-frequency amplification and driver circuits. Designed to handle up to -30V collector-base and collector-emitter voltages with a maximum of -1A current, it features low saturation voltage of 350mV, ensuring energy-efficient operation. Ideal for industrial automation, audio amplification, and driver circuits, this compact device offers a power dissipation of 2.0W and junction temperature up to 150°C. Secure your supply for high-reliability electronic designs with ROHM quality online now.
Get ROHM 2SAR293P5 today—built for precision, low saturation voltage, and long-lasting durability.
Frequently Asked Questions
Where can I buy ROHM 2SAR293P5T100?
You can click on the BUY or RFQ button to purchase 2SAR293P5T100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR293P5T100?
You can download the 2SAR293P5T100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR293P5T100?
ROHM
