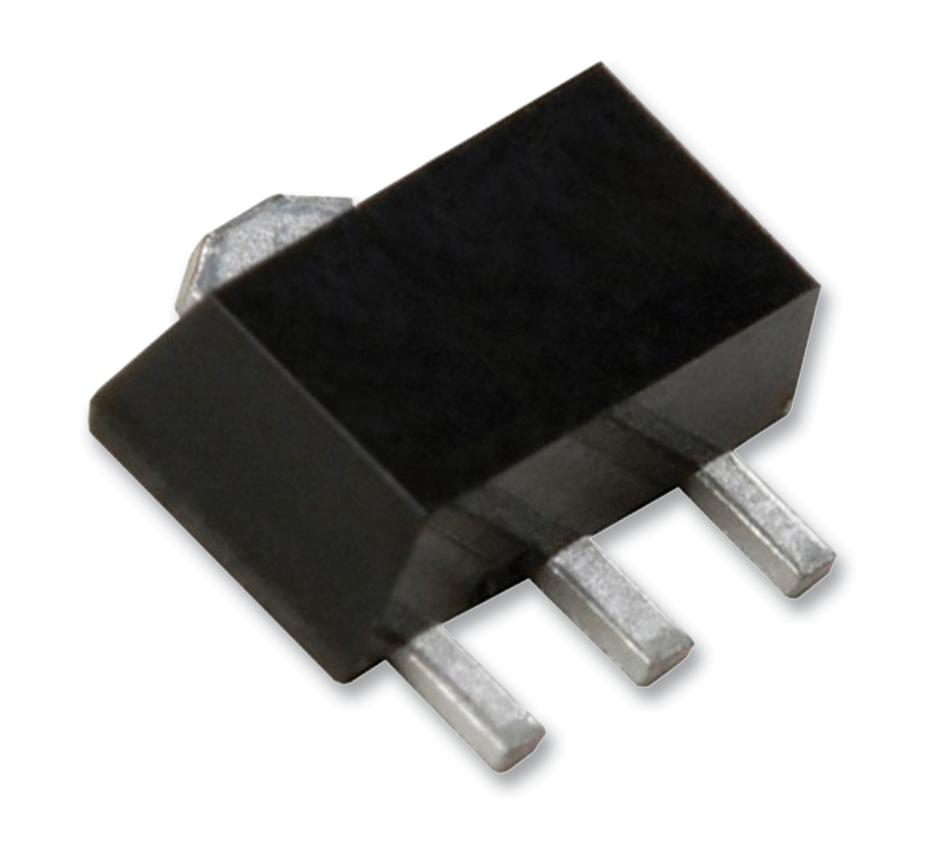

ROHM DTDG23YPT100 digital transistor
The DTDG23YP is a compact digital transistor featuring a built-in resistor and zener diode, designed for reliable operation in inverter, interface, and driver applications. It supports high DC current gain with low on-voltage, providing excellent protection against reverse surge with its integrated zener diode. Suitable for use in various electronic circuits, this transistor efficiently handles collector currents up to 2A and operates at voltages up to 60V, making it ideal for industrial and automation systems demanding durability and performance in compact form factors.
ROHM DTDG23YPT100 digital transistor Specifications:
- Collector Current: 2A
- Collector-Emitter Voltage: 60+10V
- Input Voltage: -6 to 40V
- Power Dissipation: 1.5W
- Junction Temperature: -55°C to +150°C
- Tone Frequency: 80MHz
- Built-in Zener Diode: Yes, provides reverse surge protection
- Package: SOT-89, size 4.5x4.0x1.4mm
- Maximum Storage Temperature: -55°C to +150°C
- DC Current Gain: Min. 300 at Vo/lo=2V/0.5A
- On-Voltage: Typ. 400mV at 500mA
- Input Resistance: 1.54kΩ to 2.86kΩ
- Emitter-Base Resistance: 7kΩ to 13kΩ
- Transition Frequency: 80MHz
Buy the ROHM DTDG23YP – Reliable Digital Transistor for Industrial Applications
Order the reliable digital transistor with built-in resistor and zener diode from ROHM online today. Designed for inverter, interface, and driver applications, this compact device supports up to 2A collector current and 60V operation. Its high current gain, low on-voltage, and built-in surge protection make it suitable for demanding industrial environments. Easy to integrate into your electronic circuits, ensuring durability and consistent performance, it is perfect for automation and power management systems seeking a robust, space-saving solution.
Buy ROHM DTDG23YP now and experience unmatched reliability and performance in inverter, driver, and interface circuits with built-in protection features.
Frequently Asked Questions
Where can I buy ROHM DTDG23YPT100?
You can click on the BUY or RFQ button to purchase DTDG23YPT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part DTDG23YPT100?
You can download the DTDG23YPT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of DTDG23YPT100?
ROHM
