ROHM 2SAR533PHZGT100 High-Speed Transistor
The 2SAR533P HZG is a high-speed, low saturation voltage NPN silicon transistor suitable for low-frequency amplifier and switching applications. Encased in a SOT-89 package, it features excellent switching characteristics, high collector current capacity of 3A, and collector-emitter voltage of -50V. Its key specifications include a power dissipation of 0.5W, junction temperature up to 150°C, and a transition frequency of 300MHz. Qualified under AEC-Q101 standards, it provides reliable performance for automotive and industrial circuits with low ON resistance and fast switching times.
ROHM 2SAR533PHZGT100 High-Speed Transistor Specifications:
- Package: SOT-89
- Package Taping Size: 4540 mm
- Reel Size: 7100 mm
- Tape Width: 12 mm
- Quantity: 1000 pcs
- Collector-Base Voltage Vcbo: -50 V
- Collector-Emitter Voltage Vceo: -50 V
- Emitter-Base Voltage Vebo: 6 V
- Collector Current Ic: -3 A
- Power Dissipation P: 0.5 W
- Power Dissipation Po: 2.0 W
- Junction Temperature Tj: 150°C
- Storage Temperature Range: -55°C to +150°C
- Transition Frequency fr: 300 MHz
- Collector Cut-Off Current Icpo: -1.0 pA
- Collector-Base Breakdown Voltage BVcbo: -50 V
- Collector-Emitter Breakdown Voltage BVceo: -50 V
- Gain: 180 to 450
- Collector-Emitter Saturation Voltage VeE(sat): -200 to -400 mV
- Base-Emitter Voltage: typical values based on collector current
- Output Capacitance: 24 pF
- Turn-On Time: 45 ns
- Storage Time: 250 ns
- Fall Time: 35 ns

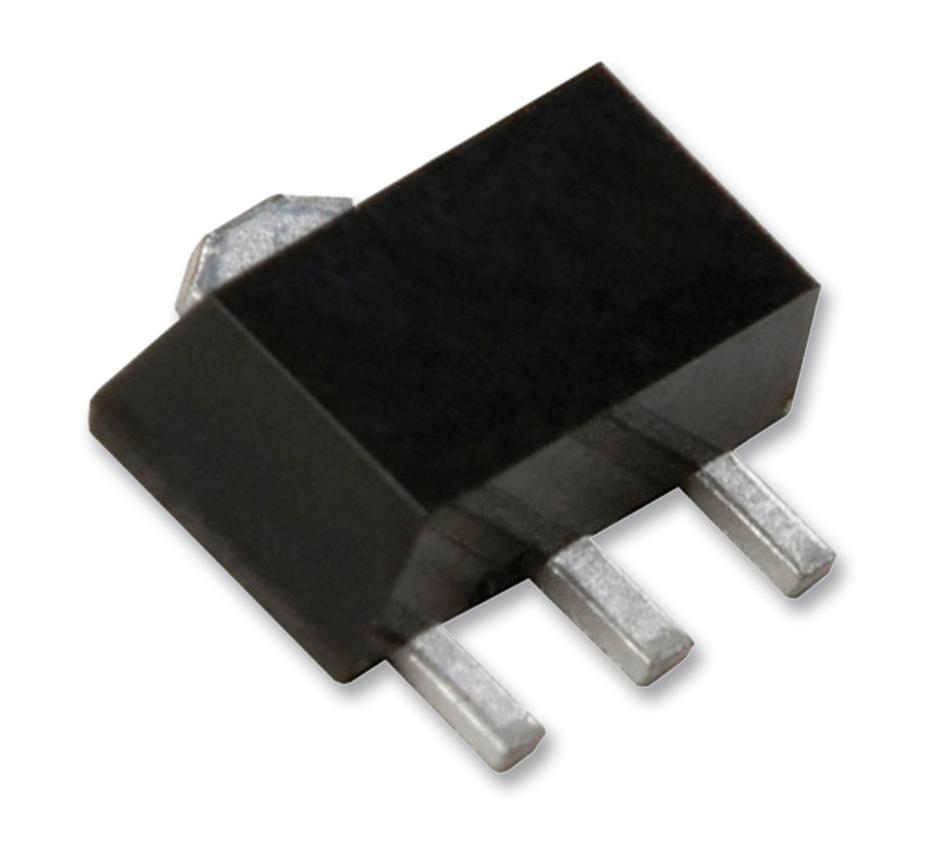

Buy the Buy ROHM 2SAR533P HZG Part Number 2SAR533PHZGT100 Online
Purchase the ROHM 2SAR533PHZG transistor online today to ensure your circuits benefit from its low saturation voltage, fast switching speeds, and reliable quality. Designed in a compact SOT-89 package, it is ideal for high-frequency amplifier and switching applications in automotive and industrial environments. With a collector current of 3A and a voltage rating of -50V, this AEC-Q101 qualified component guarantees durable, high-performance operation. Order now for quick delivery and elevate your circuit designs with trusted semiconductor technology.
Buy ROHM 2SAR533PHZG now and experience unmatched reliability and high-speed switching performance for your automotive and industrial circuits.
