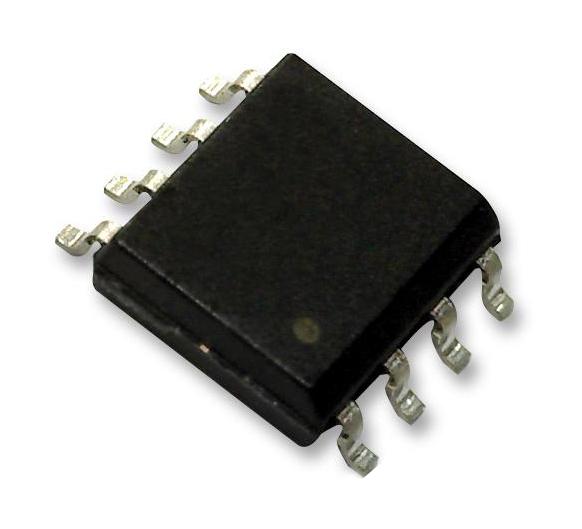

ROHM BA15218FE2 Low Noise Operational Amplifier
The BA15218F is a low noise operational amplifier designed for high-performance audio and active filter applications. It provides high voltage gain, low input-referred noise voltage at 1.0uVrms, and total harmonic distortion of 0.0015%. Operating over a wide supply voltage range from +2.0V to +16.0V, it ensures stable performance in various environments, with a temperature range from -40°C to +85°C. The compact SOP8 package (5.00mm x 6.20mm x 1.71mm) makes it suitable for precision analog circuitry requiring minimal noise and distortion.
ROHM BA15218FE2 Low Noise Operational Amplifier Specifications:
- Operating Supply Voltage: +2.0V to +16.0V
- Supply Current: 5mA (Typ)
- Slew Rate: 3V/μs (Typ)
- Input Referred Noise Voltage: 1.0uVrms (Typ)
- Total Harmonic Distortion: 0.0015% (Typ)
- Temperature Range: -40°C to +85°C
- Package: SOP8, Dimensions: 5.00mm x 6.20mm x 1.71mm
- High Voltage Gain
- Low Input Referred Noise
- Excellent for audio applications and active filters
Buy the Buy ROHM Low Noise Operational Amplifier Part Number BA15218F Online
Discover the ROHM BA15218F low noise operational amplifier available online. Designed for high-performance audio and active filter applications, this op-amp offers high voltage gain, very low input noise of 1.0uVrms, and minimal total harmonic distortion of 0.0015%. Its wide supply voltage range from +2.0V to +16.0V and operating temperature from -40°C to +85°C make it suitable for various demanding environments. The compact SOP8 package ensures ease of design integration, delivering excellent signal fidelity and low distortion.
Buy ROHM BA15218F now and experience unmatched reliability and performance in precision analog circuitry.
Frequently Asked Questions
Where can I buy ROHM BA15218FE2?
You can click on the BUY or RFQ button to purchase BA15218FE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BA15218FE2?
You can download the BA15218FE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BA15218FE2?
ROHM
