ROHM BA4564WFVE2 Low Noise Operational Amplifier
The BA4564WFV is a low-noise, high-reliability operational amplifier designed for audio and precision electronic applications. It features a wide operating voltage range from +4V to +15V, low total harmonic distortion of 0.003%, and low input-referred noise of 1.0 nV/√Hz. Built with monolithic silicon technology, it offers high voltage gain, wide temperature tolerance from -40°C to +105°C, and excellent common-mode rejection ratio of up to 90 dB. This IC is ideal for audio signal processing, instrumentation, and high-fidelity audio systems, ensuring exceptional performance with minimal distortion.
ROHM BA4564WFVE2 Low Noise Operational Amplifier Specifications:
- Supply Voltage: +4V to +15V
- Input Offset Voltage: 0.5mV to 7mV
- Input Offset Current: 5nA to 200nA
- Input Bias Current: 50nA to 800nA
- Maximum Output Voltage Swing: ±10V to ±11.5V
- Large Signal Voltage Gain: 83dB to 100dB
- Input Common-mode Voltage Range: ±12V to +14V
- Common-mode Rejection Ratio: 70dB to 90dB
- Power Supply Rejection Ratio: 76.5dB to 90dB
- Channel Separation: 105dB
- Slew Rate: 4V/μs
- Unity Gain Bandwidth: 4MHz
- Total Harmonic Distortion + Noise: 0.003%
- Input Referred Noise Voltage: 1.0 nV/√Hz
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -55°C to +125°C

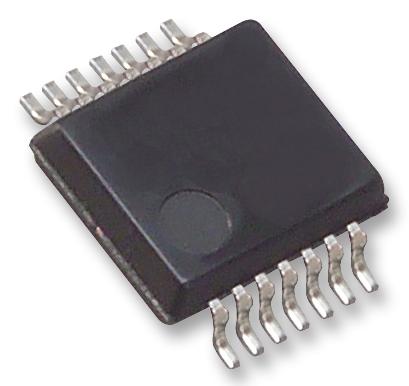

Buy the Buy ROHM Low Noise Operational Amplifier Part Number BA4564WFV Online
Experience exceptional audio clarity and precision with the ROHM BA4564WFV low noise operational amplifier. Designed for high-reliability and low distortion, it features a wide supply voltage range from +4V to +15V, ensuring versatile application in audio systems, instrumentation, and high-fidelity audio projects. With a low total harmonic distortion of 0.003% and input-referred noise of just 1.0 nV/√Hz, this op-amp guarantees minimal signal degradation. Its wide temperature tolerance from -40°C to +105°C provides stable performance in demanding environments, making it an ideal choice for professional and hobbyist applications seeking reliable, high-quality operational amplification.
Get ROHM BA4564WFV today—built for high-fidelity audio, low distortion, and reliable performance in precision electronic applications.
Frequently Asked Questions
Where can I buy ROHM BA4564WFVE2?
You can click on the BUY or RFQ button to purchase BA4564WFVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BA4564WFVE2?
You can download the BA4564WFVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BA4564WFVE2?
ROHM
