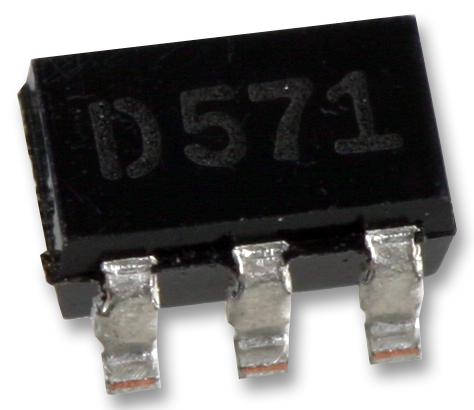

ROHM BD2242GGTR High-Side Switch IC
The BD2242G is a high-side switch IC designed for USB and consumer electronics applications. It features adjustable current limit from 0.2A to 1.7A, low on-resistance of 89 milliohms, and built-in protection functions such as thermal shutdown, over-current detection, under-voltage lockout, and reverse current protection. Equipped with soft-start and output discharge functions, it operates within a voltage range of 2.8V to 5.5V and temperature range from -40°C to +85°C, making it ideal for reliable power switching in compact spaces.
ROHM BD2242GGTR High-Side Switch IC Specifications:
- Operating Voltage: 2.8V to 5.5V
- On-Resistance: 89mΩ (Typ)
- Current Limit Threshold: 0.2A to 1.7A adjustable
- Standby Current: 0.01μA (Typ)
- Operating Temperature Range: -40°C to +85°C
- Package: SSOP6, 2.90mm x 2.80mm x 1.25mm
- Built-in Thermal Shutdown and Over-Current Detection
- Active Control: High or Low logic
- Fault detection through open-drain output
- Uses external resistor for current limit setting (11.97kΩ to 106.3kΩ)
Buy the Rohm BD2242G – Reliable High-Side Switch for Industrial Applications
Order the Rohm BD2242G high-side power switch IC online today to ensure robust performance with adjustable current limit, low on-resistance, and comprehensive protection features. Ideal for USB hubs, consumer appliances, and peripheral equipment, this compact IC offers reliable operation from 2.8V to 5.5V and includes thermal shutdown, over-current detection, and reverse current protection. Easily integrated into your circuit with minimal footprint, it guarantees efficient power control and enhanced circuit safety, boosting your project's reliability.
Buy Rohm BD2242G now and experience unmatched reliability and performance in your power management designs.
Frequently Asked Questions
Where can I buy ROHM BD2242GGTR?
You can click on the BUY or RFQ button to purchase BD2242GGTR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD2242GGTR?
You can download the BD2242GGTR datasheet or visit the ROHM website for support.
Who is the manufacturer of BD2242GGTR?
ROHM
