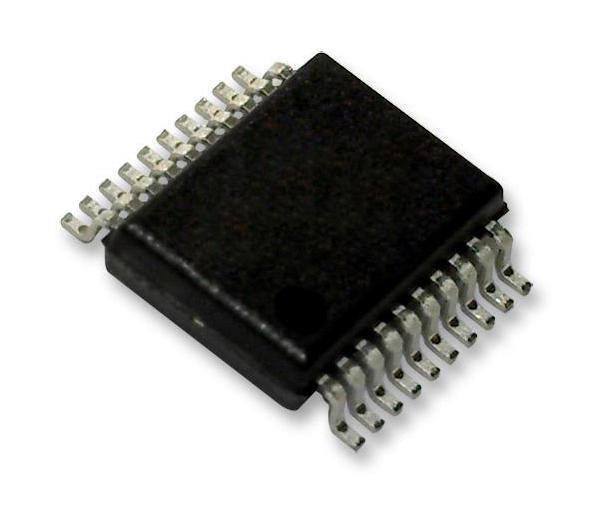

ROHM BU2092FVE2 Serial Driver Module
BU2092F/BU2092FV are serial-in/parallel-out drivers with built-in shift registers and latch circuits, capable of controlling up to 12 outputs for microcontroller interface. The open drain outputs can deliver up to 25mA, making them suitable for driving LEDs directly. They operate on low voltage with a power supply range of 2.7V to 5.5V, and their compact packages—SOP18 and SSOP-B20—are designed for efficient installation. Ideal for industrial control systems, they ensure reliable data storage and output control under varied operating conditions, featuring low quiescent current and safe thermal management.
ROHM BU2092FVE2 Serial Driver Module Specifications:
- Power supply voltage range: 2.7V to 5.5V
- Output voltage: 0 to 25.0V
- Operating temperature range: -25°C to +75°C
- Package options: SOP18 (11.20mm x 7.80mm x 2.01mm), SSOP-B20 (6.50mm x 6.40mm x 1.45mm)
- Maximum supply voltage: Vpop up to +7.0V
- Input voltage: Vss-0.3 to Vop+0.3V
- Output leak current: 10.0 pA (high), -5.0 pA (low)
- DC input voltage high: 3.5V, low: 1.5V
- Maximum junction temperature: 75°C
- Power dissipation: SOP18 (0.55W), SSOP-B20 (0.65W)
- Open drain output capable of driving LED loads directly
Buy the ROHM BU2092F – Reliable Serial-In / Parallel-Out Driver for Industrial Applications
Purchase the ROHM BU2092F module online for your automation projects. With its 12-channel open drain outputs, low voltage operation, and compact design, it is ideal for controlling multiple LEDs and digital signals in industrial systems. The built-in shift register and latch circuit ensure reliable data handling, while the robust package options promote easy installation. Upgrade your control modules today to ensure efficient, reliable operation with a component engineered for long-term performance and safety in demanding environments.
Get ROHM BU2092F today—built for precision and long-lasting durability in industrial control and LED driving applications.
Frequently Asked Questions
Where can I buy ROHM BU2092FVE2?
You can click on the BUY or RFQ button to purchase BU2092FVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BU2092FVE2?
You can download the BU2092FVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BU2092FVE2?
ROHM
