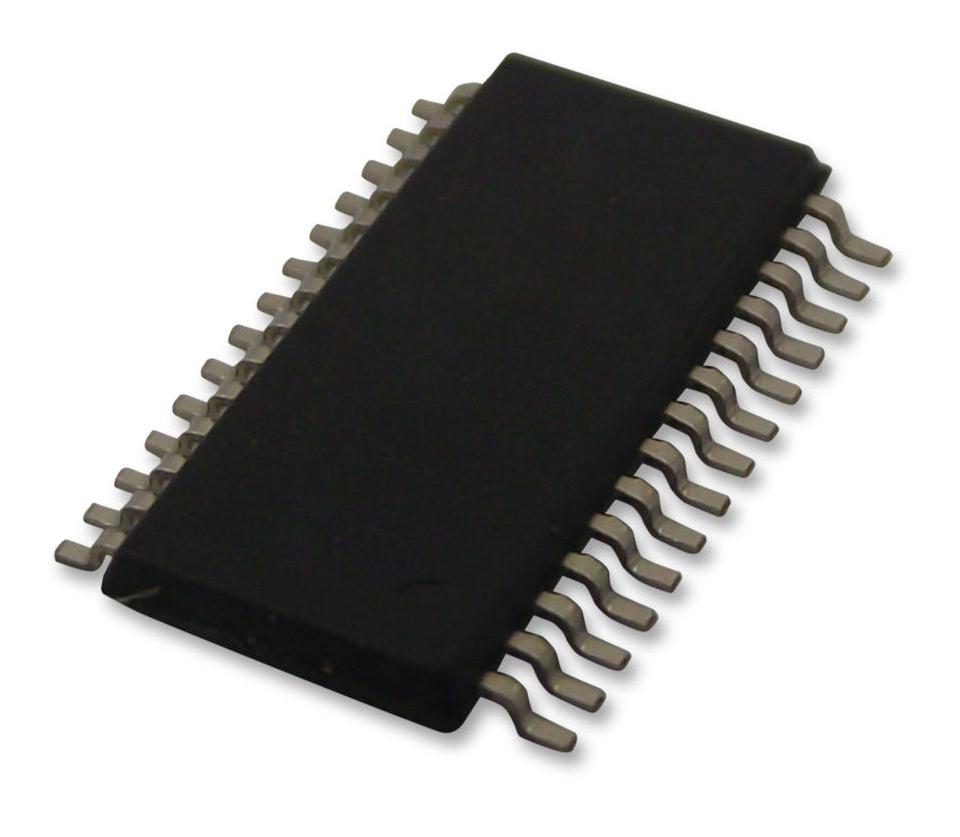

ROHM BD37532FVE2 Sound Processor
The BD37532FV is a sophisticated car audio sound processor featuring a built-in 3-band equalizer, differential input selector, ground isolation amplifier inputs, and adjustable input gain control. It reduces switching noise through advanced circuits, offers multiple input configurations, and includes terminals for subwoofer outputs and processing of front, rear, and subwoofer signals. Its energy-efficient BiCMOS design supports 7.0V to 9.5V power supply operation, with low total harmonic distortion and noise voltages. Ideal for integrated car audio systems, mini comps, and TVs, ensuring high-quality sound with flexible control and minimal external components.
ROHM BD37532FVE2 Sound Processor Specifications:
- Power Supply Voltage Range: 7.0V to 9.5V
- Circuit Current (No Signal): 38mA (Typ)
- Total Harmonic Distortion 1: 0.001% (Typ) at 1Vrms output
- Total Harmonic Distortion 2: 0.002% (Typ) at 1Vrms output
- Output Noise Voltage 1: 3.8uVrms (Typ) for front/rear channels
- Output Noise Voltage 2: 4.8uVrms (Typ) for subwoofer
- Residual Output Noise Voltage: 1.8uVrms (Typ)
- Input Impedance (A, B, C): 70-130kΩ, (D, E): 175-325kΩ
- Maximum Input Voltage: 2.3Vrms (Typ)
- Operating Temperature Range: -40°C to +85°C
- Package: SSOP-B28, 10.0mm x 7.6mm x 1.35mm
- Power Dissipation: 1.06W (At 25°C on standard board)
Buy the Buy ROHM BD37532FV Part Number E2 Online
Enhance your car audio system with the ROHM BD37532FV sound processor, featuring a built-in 3-band equalizer, differential input selector, and ground isolation. Its advanced noise reduction circuits ensure clear sound, while multiple input and output configurations provide flexibility for various setups. Efficient and compact, this IC supports 7.0V to 9.5V power supply ranges, making it ideal for driving high-fidelity sound in vehicles, mini components, and TVs. Order online today for a reliable, high-performance audio solution with minimal external parts required.
Get ROHM BD37532FV today—designed for high-quality car audio processing with low noise and versatile input options.
Frequently Asked Questions
Where can I buy ROHM BD37532FVE2?
You can click on the BUY or RFQ button to purchase BD37532FVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD37532FVE2?
You can download the BD37532FVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD37532FVE2?
ROHM
