ROHM BD62017AFSE2 Brushless Fan Controller
The BD62017AFS is a 3-phase brushless fan motor controller designed for air conditioners, water pumps, and household appliances, providing sinusoidal and square wave operation modes. It features duty control, phase control from 0° to +40°, protective circuits, and supports sinusoidal commutation at varying hall frequencies. With its compact SSOP-A24 package, it enables motor standardization, easy replacement, and efficient drive for various fan and pump applications, ensuring reliable and efficient operation in thermal and electrical limits.
ROHM BD62017AFSE2 Brushless Fan Controller Specifications:
- Supply Voltage: 10V to 18V
- Maximum Junction Temperature: +150°C
- Package: SSOP-A24, Dimensions: 10.0mm x 7.8mm x 2.1mm
- Duty Control Voltage Range: 2.1V to 5.4V
- Phase Control Range: 0° to +40°
- Hall Sensor Inputs: Phase U+, U-, V+, V-, W+, W-
- Output Current (Driver): Max 15mA
- VREG Output Voltage: 5V/30mA
- Protection Circuits: OCP, TSD, UVLO, Motor Lock Protection
- Carrier Frequency Range: 16kHz to 50kHz via RT resistor
- Control modes: Sinusoidal and PWM square wave, 120° and 180° commutation
- Application: Air conditioners, pumps, dishwashers, washing machines

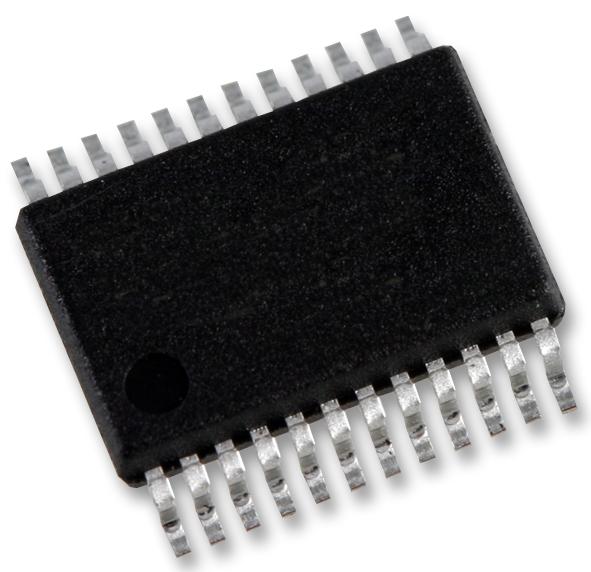

Buy the Buy ROHM BD62017AFS Part Number BD62017AFSE2 Online
Get the highly reliable ROHM brushless fan controller BD62017AFS online today. Designed for air conditioners, water pumps, and household apps, it offers sinusoidal and PWM modes, phase control up to +40°, and protective circuits like OCP, TSD, UVLO. Featuring a compact SSOP-A24 package, it simplifies motor standardization, and ensures stability even under thermal or electrical stress. Perfect for modern HVAC and pump systems needing efficient, dependable control with easy replacement, this controller guarantees high performance and safety in a compact footprint.
Order your ROHM series BD62017AFS motor controller today and ensure dependable, efficient performance for your air-conditioning and pump projects.
Frequently Asked Questions
Where can I buy ROHM BD62017AFSE2?
You can click on the BUY or RFQ button to purchase BD62017AFSE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD62017AFSE2?
You can download the BD62017AFSE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD62017AFSE2?
ROHM
