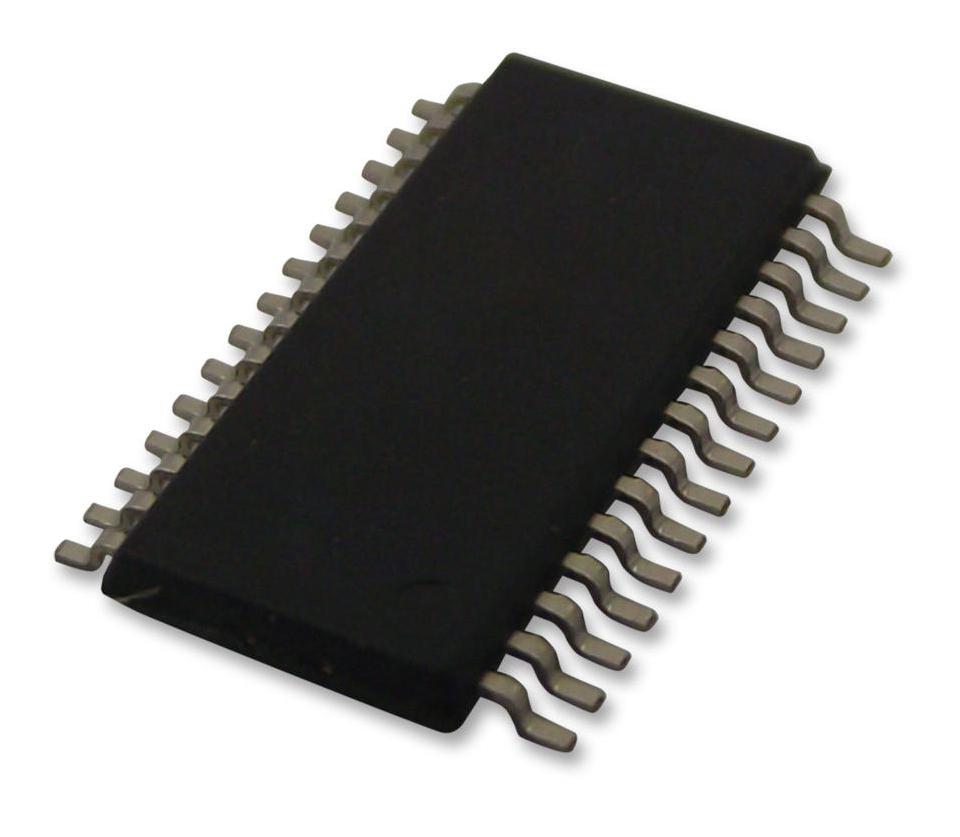

ROHM BD37534FVE2 Car Audio Sound Processor
The BD37534FV is a car audio sound processor with an integrated 3-band equalizer, input selector, ground isolation, and advanced switching technology to reduce noise. It features multiple input/output configurations, broad operating voltage of 7.0V to 9.5V, and low THD+N across channels. Its compact SSOP-B28 package enhances space-efficient integration in automotive and home audio systems, offering adjustable gain, tone controls, and digital I2C bus control for flexible sound customization. Designed for high-quality audio environments, it supports various filters, loudness, and phase settings for superior sound quality.
ROHM BD37534FVE2 Car Audio Sound Processor Specifications:
- Package: SSOP-B28
- Supply Voltage: 7.0V to 9.5V
- Circuit Current (No Signal): 38mA (Typ)
- Total Harmonic Distortion 1: 0.001% (Typ) (FRONT, REAR)
- Total Harmonic Distortion 2: 0.002% (Typ) (SUBWOOFER)
- Maximum Input Voltage: 2.3Vrms (Typ)
- Cross-talk Between Selectors: -100dB (Typ)
- Output Noise Voltage (FRONT, REAR): 3.8uVrms (Typ)
- Output Noise Voltage (SUBWOOFER): 4.8uVrms (Typ)
- Residual Output Noise Voltage: 1.8uVrms (Typ)
- Operating Temperature Range: —-40°C to +85°C
- Dimensions: 10.0mm x 7.60mm x 1.35mm
- Control Interface: I2C (compatible with 3.3V/5V)
- Built-in 3-band equalizer with adjustable Q, Gy, fc
- Supports bass, middle, treble, loudness, fader, mixing
- Ground isolation amplifiers and differential input selector
- Includes mute, level meter, phase, and LPF control
- Low power consumption via BICMOS process
- Compatible with car and audio equipment applications
Buy the ROHM Series BD37534FV Car Audio Sound Processor: BD37534FV
Get the ROHM Series BD37534FV today through our online store. This advanced car audio processor offers a built-in 3-band equalizer, noise reduction, digital control via I2C, and compact packaging. Perfect for automotive and home audio applications, it improves sound clarity with adjustable gain, tone, and filter settings. Experience high-quality audio with low THD and minimal noise, all easily controlled via digital interface. Upgrade your sound system now and enjoy a richer, clearer listening experience with this reliable, high-performance device.
Order your ROHM Series BD37534FV high-performance car audio sound processor today and enhance your automotive sound system with superior noise reduction and tone control features.
