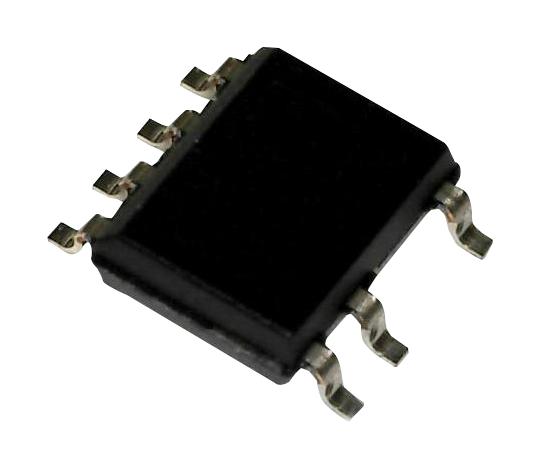

ROHM BM1Z001FJE2 Zero Cross Detection IC
The zero-cross detection IC effortlessly monitors AC voltage zero crossings for household appliances and industrial applications. It features high-voltage tolerance up to 600 V, very low current consumption, and supports both normal and double rectification systems. Designed for high reliability, it incorporates an N-channel open drain output, UVLO protection, and built-in noise filters for precise detection under various conditions. Its compact SOP-J7S package ensures easy integration into power control units, making it ideal for washing machines, air conditioners, and motor drivers with demanding safety and efficiency requirements.
ROHM BM1Z001FJE2 Zero Cross Detection IC Specifications:
- VCC Input Power Supply Voltage Range: -0.3 V to +29.0 V
- Operation Voltage for VH_AC1 and VH_AC2: up to 300 V AC
- VCC Voltage: 10 V to 28 V (typical 15 V)
- Circuit Current at Standby: 50 pA (Typ)
- Circuit Current during Operation: 160 pA (Typ)
- Max Junction Temperature: 150 °C
- Operating Temperature Range: -40 °C to +105 °C
- Package Type: SOP-J7S (Dimension: 4.90 mm x 6.00 mm x 1.65 mm)
- Response Time for Noise Filters: tA (approx 1.27 ms), tAC (approx 1.73 ms)
- Detection Voltage: VH_AC1 and VH_AC2: 10 V to 20-30 V
- Leakage Current at ACOUT: 0.0 – 1.0 HA
- On Resistance of ACOUT: 50 – 100 Ω
- Thermal Dissipation: Derated by 6.64 mW/°C on specified PCB
- Input Frequency Range: 45 – 65 Hz
- Designed for high reliability with UVLO, thermal shutdown, and overcurrent protection features.
Buy the ROHM Series BM1Z001FJ Zero Cross Detection IC: BM1Z001FJ
Purchase the ROHM Series BM1Z001FJ zero cross detection IC online now to ensure high-precision AC voltage monitoring in your electrical projects. Featuring a 600 V tolerance, ultra-low power consumption, and support for both normal and double rectification, this compact IC enhances safety and efficiency for household appliances, motor drivers, and industrial control systems. Its integrated noise filters, UVLO protection, and robust package simplify design integration. Reliable, efficient, and easy to incorporate into power supply modules, it’s an essential component for modern electrical applications.
Order your ROHM Series BM1Z001FJ zero cross detection IC today and give your household or industrial power systems reliable and precise AC voltage monitoring.
Frequently Asked Questions
Where can I buy ROHM BM1Z001FJE2?
You can click on the BUY or RFQ button to purchase BM1Z001FJE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM1Z001FJE2?
You can download the BM1Z001FJE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BM1Z001FJE2?
ROHM
