ROHM BD3925HFPCTR Voltage Tracker
The BD3925HFP is a robust automotive voltage tracker designed to operate within a wide input supply voltage range of 4.5V to 36V, capable of withstanding voltages up to 50V. It delivers an output current of up to 500mA while maintaining a low quiescent current of 45µA, ensuring energy efficiency for car battery systems. With integrated over-current and thermal shutdown protections, it provides reliable performance in harsh environments. Ideal for automotive body control, stereos, and navigation systems, it supports high temperature ranges from -40°C to +125°C for long-lasting durability.
ROHM BD3925HFPCTR Voltage Tracker Specifications:
- Input Supply Voltage Range: 4.5V to 36V
- Maximum Operating Voltage: 50V
- Output Current: Up to 500mA
- Quiescent Current: 45µA (Typ)
- Offset Voltage: +10mV (for 5V output, Vcc 6V to 36V)
- Operating Temperature Range: -40°C to +125°C
- Thermal Shutdown: Yes
- Over-Current Protection: Yes
- Package: TO252-5 (FP), HRP5 (HFP)
- Dimensions (TO252-5): 6.50mm x 9.50mm x 2.50mm
- Dimensions (HRP5): 9.395mm x 10.54mm x 2.005mm
- Supply Voltage for Power: Vcc up to 50V
- Output Load: 5mA to 200mA
- Protection features: Over-current and Thermal Shutdown
- Recommended Capacitors: 0.33µF to 1000µF at Vcc and Output, low ESR ceramic capacitors recommended
- Note: Surge voltage protection includes Zener diode, and reverse Vcc protection with Schottky diode
- Suitable for automotive body control, stereos, navigation, and harsh environments

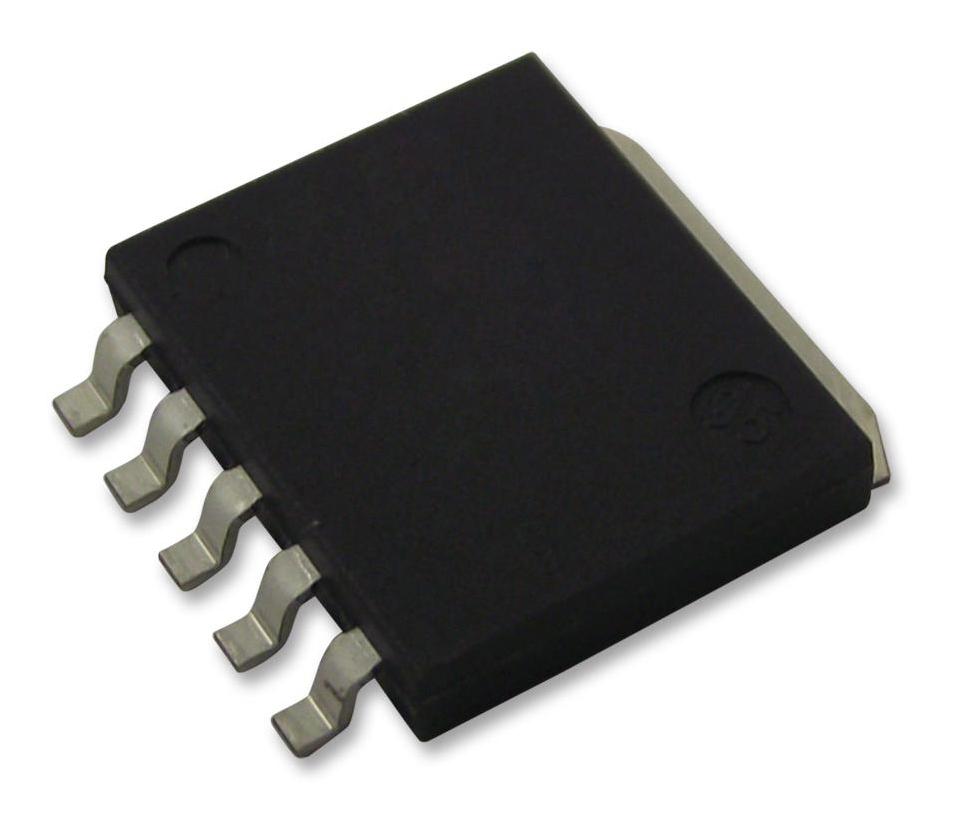

Buy the Buy ROHM BD3925HFP-C Part Number BD3925HFP-C Online
Order the ROHM BD3925HFP-C voltage tracker online now to benefit from its wide input voltage range, 500mA load capacity, and low quiescent current. Designed specifically for automotive applications, it features integrated over-current and thermal shutdown protections that safeguard your systems against harsh conditions. Its compact package ensures easy mounting and high reliability even in extreme temperatures from -40°C to +125°C. Perfect for body control modules, stereos, and navigation systems, this power management component guarantees efficient operation and durability. Purchase today for dependable performance in your automotive electronics projects.
Get ROHM BD3925HFP-C today—designed for automotive low-current systems with over-current and thermal protections, ensuring long-lasting reliability.
Frequently Asked Questions
Where can I buy ROHM BD3925HFPCTR?
You can click on the BUY or RFQ button to purchase BD3925HFPCTR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD3925HFPCTR?
You can download the BD3925HFPCTR datasheet or visit the ROHM website for support.
Who is the manufacturer of BD3925HFPCTR?
ROHM
