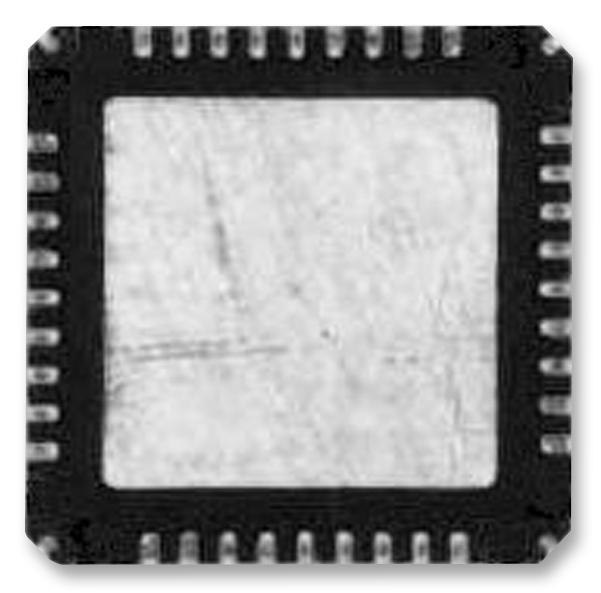

ROHM BD63888MUVE2 Bipolar Stepping Motor Driver
The ROHM BD63888MUV-E2 is a versatile bipolar low-consumption stepping motor driver designed for applications requiring precise motor control. It operates on a 36V power supply and delivers up to 1.2A of output current. Key features include PWM constant current control, multiple step modes (full, half, and quarter), and a built-in spike noise blanking function for enhanced stability. The driver's CLK-IN drive mode simplifies input interface design, making it suitable for monitoring cameras, printers, robots, and other devices requiring reliable motor operation. It also incorporates protective features like over-current protection and thermal shutdown to ensure safe and efficient operation.
ROHM BD63888MUVE2 Bipolar Stepping Motor Driver Specifications:
- Range of Power Supply Voltage: 8 V to 28 V
- Rated Output Current: 1.2 A
- Range of Operating Temperature: -25 °C to +85 °C
- Output ON Resistance: 1.0 Ω (Typ) (total of upper and lower resistors)
- Package: VQFN036V6060 (6.0 mm x 6.0 mm x 1.0 mm)
- Supply Voltage: -0.2 to +36.0 V
- Input Voltage for Control Pin: -0.2 to +5.5 V
- SENSE Maximum Voltage: 0.7 V
- Output Current: 1.2 A/Phase
- Storage Temperature Range: -55 to +150 °C
- Maximum Junction Temperature: +150 °C
- Junction to Ambient Thermal Resistance: 103.9 °C/W (Typ)
- Junction to Top Characterization Parameter: 4 °C/W (Typ)
