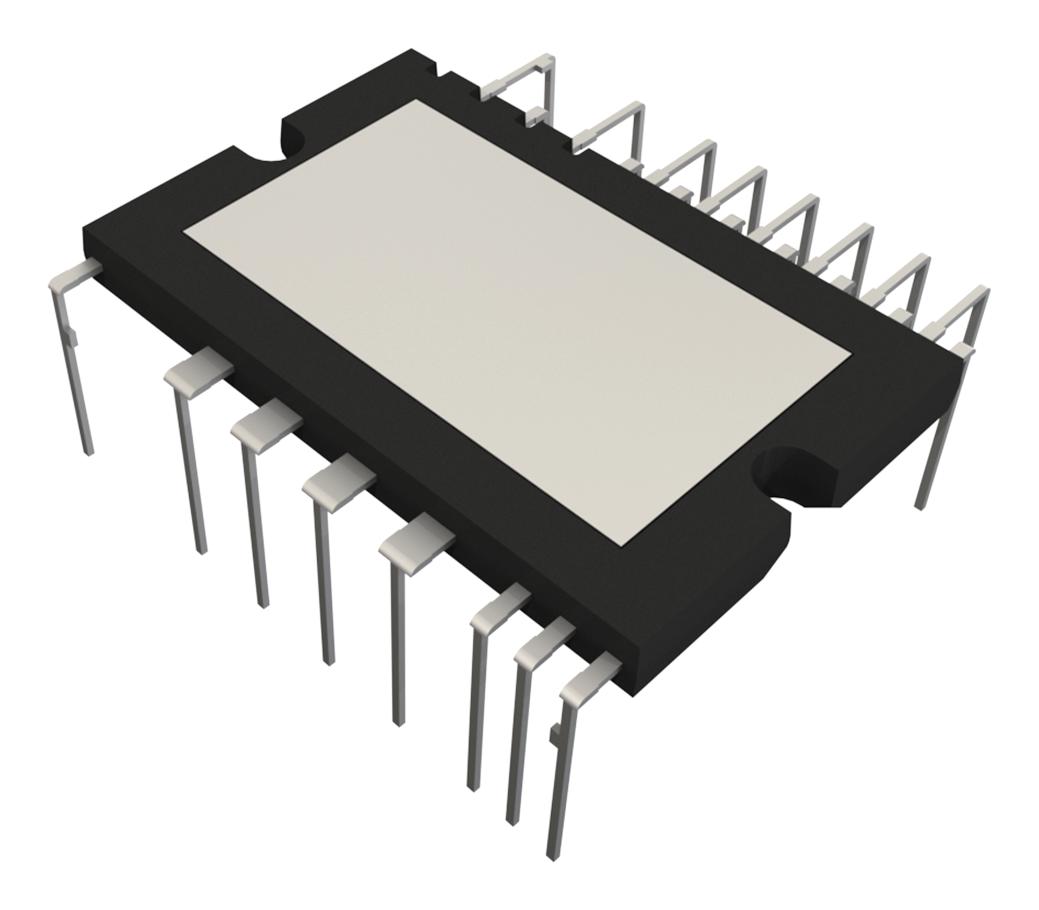

ROHM BM63373SVA Inverter Power Module
The BM63373S-VA is an intelligent 3-phase inverter power module designed for motor control applications. It features high-voltage IGBTs (600V/10A), built-in bootstrap diodes, and gate drivers for both high and low sides with protection functions such as SCP, TSD, and UVLO. The module supports applications like air conditioners, washing machines, and refrigerators, offering compact size (38mm x 24mm x 3.5mm) and reliable thermal and electrical performance under various operating conditions.
ROHM BM63373SVA Inverter Power Module Specifications:
- Collector-Emitter Voltage: 600V
- Collector Current: 10A
- Module Case Temperature: -25 to +115°C
- Junction Temperature: 150°C
- Package: HSDIP25, Size: 38mm x 24mm x 3.5mm
- Built-in bootstrap diode and IGBT gate drivers for high/low side control
- Protection features include SCP, TSD, UVLO
- Operating Voltage for inverter: 450V, Surge Voltage: 500V
- Control supply voltage: 13.5V to 16.5V, Control input voltage: 0 to 5.5V
- Switching times: 0.15 to 1.60 μs depending on conditions
- Reverse voltage for bootstrap diode: 600V
- Isolation voltage: 1500 Vrms
- Thermal resistance: 3.7°C/W junction to case
- Application: motor control for appliances, compressors, and industrial drives
Buy the ROHM BM63373S-VA – Reliable Motor Control Inverter for Industrial Applications
Purchase the ROHM BM63373S-VA inverter power module online today and ensure high efficiency and durability for your motor control applications. This module features integrated gate drivers, bootstrap diodes, and protection circuits like SCP and TSD, making it ideal for appliances such as air conditioners, washing machines, and refrigerators. Its compact design (38mm x 24mm x 3.5mm) and robust thermal management provide reliable operation under demanding conditions. Upgrade your systems with this industry-grade module for longer lifespan and superior performance.
Buy ROHM BM63373S-VA now and experience unmatched reliability and performance in motor control and industrial inverter systems.
