ROHM BM63377SVA Motor Control Module
The BM63377S-VA/-VC is an intelligent power module designed for motor control applications, featuring 600V IGBTs, bootstrap diodes, and integrated gate drivers. It supports a three-phase inverter system with a current capacity of 30A and interfaces with control signals at 3.3V or 5V. The module incorporates protections like UVLO, SCP, and TSD, ensuring reliable operation in AC100-240V systems for air conditioners, refrigerators, and washing machines. Its compact HSDIP25 package is suitable for efficient heat dissipation and robust motor control solutions, with temperature monitoring and fault outputs for safety.
ROHM BM63377SVA Motor Control Module Specifications:
- Supply Voltage: 450 VV (P-NU,NV,NW), Surge 500 VV
- Collector-Emitter Voltage: 600 VV
- Collector Current: 30A (@ Ta=28°C)
- Peak Pulse Current: 90A (less than 1 ms)
- Collector Power Dissipation: 59W
- Junction Temperature: up to 150°C
- Module Case Temperature: -25 to +115°C
- Package: HSDIP25, dimensions 38.0mm x 24.0mm x 3.5mm
- IGBT Saturation Voltage: 1.4V (Typ)
- FWD Forward Voltage: 1.55V (Typ)
- Voltage Ratings for control supplies: 20V (VBU, VBV, VBW), 20V (HVCC, LVCC)
- Control Inputs: Active high, threshold 0.8V min, hysteresis 0.25V
- Protection Circuits: UVLO, SCP, TSD with fault outputs
- Isolation Voltage: 1500 Vrms between connected pins and heat sink
- Thermal Resistance: Case to heatsink approx. 3.0 °C/W
- Storage Temperature: -40°C to +125°C

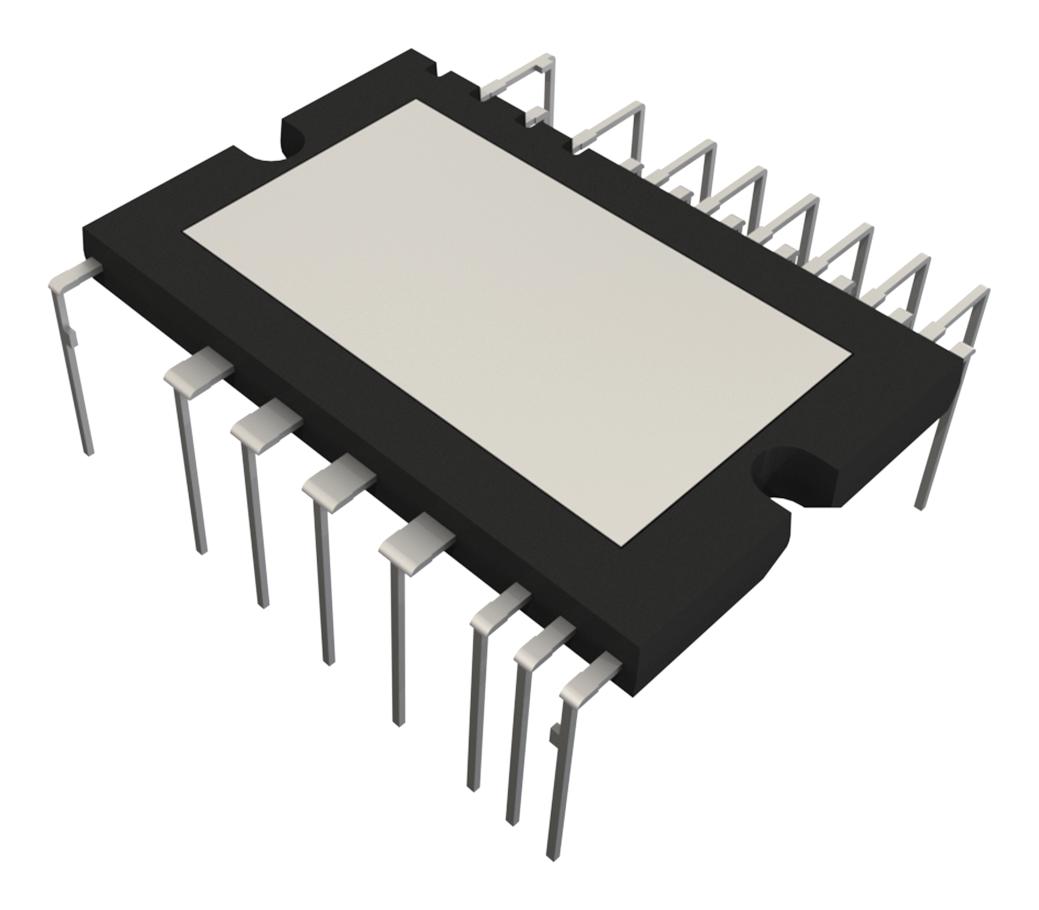

Buy the Buy ROHM Inverter for Motor Control Part Number BM63377S-VA Online
Discover the ROHM BM63377S-VA, an advanced inverter power module ideal for efficient motor control, HVAC systems, and appliances. Featuring 600V IGBTs, built-in protections like UVLO, SCP, and TSD, and integrated gate drivers, this module offers reliable operation at 30A current capacity. Its compact package ensures easy integration into your designs, while temperature monitoring and fault outputs enhance safety and durability. Perfect for air conditioners, refrigerators, and washing machines, purchase online today to upgrade your electronic motor control solutions with proven ROHM technology.
Buy ROHM BM63377S-VA now and experience unmatched reliability and performance in your motor control and HVAC applications.
Frequently Asked Questions
Where can I buy ROHM BM63377SVA?
You can click on the BUY or RFQ button to purchase BM63377SVA from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63377SVA?
You can download the BM63377SVA datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63377SVA?
ROHM
