ROHM BU91795MUFME2 LCD Segment Driver
The BU91795MUF-M is a low-duty, general-purpose LCD segment driver suitable for automotive and industrial applications. Capable of driving up to 48 segments with 1/4 duty, it features integrated RAM, buffer amplifier, oscillator circuit, and no external components needed. Its wide supply voltage range of +2.5V to +6.0V and operating temperature of -40°C to +105°C ensure durability in harsh environments. Qualified for AEC-Q100 Grade 2, it ensures reliable performance in automotive displays, meters, white goods, healthcare devices, and battery-operated systems.
ROHM BU91795MUFME2 LCD Segment Driver Specifications:
- Supply Voltage Range: +2.5V to +6.0V
- Operating Temperature: -40°C to +105°C
- Maximum Power Dissipation: 0.271W
- LCD Drive Voltage: VDD - 0.5V to VDD
- Bias: 1/3
- Display Duty: 1/4
- Maximum Segments: 48
- Interface: 2-wire Serial
- ESD(HBM): +2000V
- Latch-up Current: +100mA

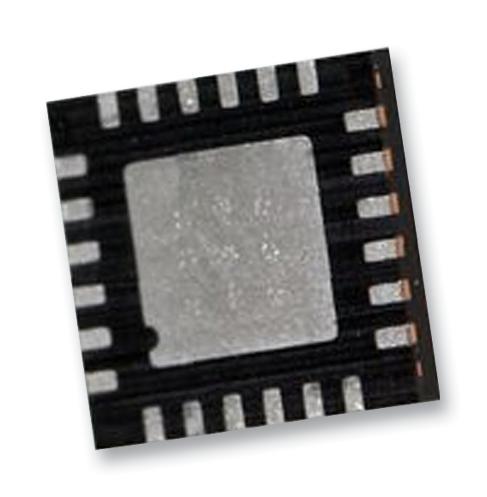

- Package: VOFN24FV4040 QFN, 4.0mm x 4.0mm x 1.0mm
- Pin Configuration: Includes SDA, SCL, OSCIN, SEG outputs, COM outputs
- Operating Conditions: Ta = -40°C to +105°C, VSS=0V, with recommended power-up sequence
- External clock frequency: 15kHz to 300kHz, frame frequency adjustable via DISCTL
- Power Save Modes: Normal, 71Hz, 64Hz, 53Hz, with corresponding current consumption
- Protection: Overvoltage, thermal, reverse connection cautions
- Qualified for automotive standards: AEC-Q100 Grade 2
- Compatible with both internal and external oscillators, no external components required
Buy the ROHM BU91795MUF-M – Reliable LCD Driver for Industrial Applications
Order the latest BU91795MUF-M LCD segment driver online today and benefit from its robust performance in harsh automotive and industrial environments. Designed for up to 48 segments with 1/4 duty, it features an integrated RAM, buffer amplifier, oscillator circuit, and wide voltage operation from +2.5V to +6.0V. Perfect for meters, white goods, healthcare devices, and battery-powered applications, this qualified component ensures long-term reliability and easy, component-free installation for your projects.
Buy ROHM BU91795MUF-M now and experience unmatched reliability and performance in automotive and industrial LCD segment driving.
